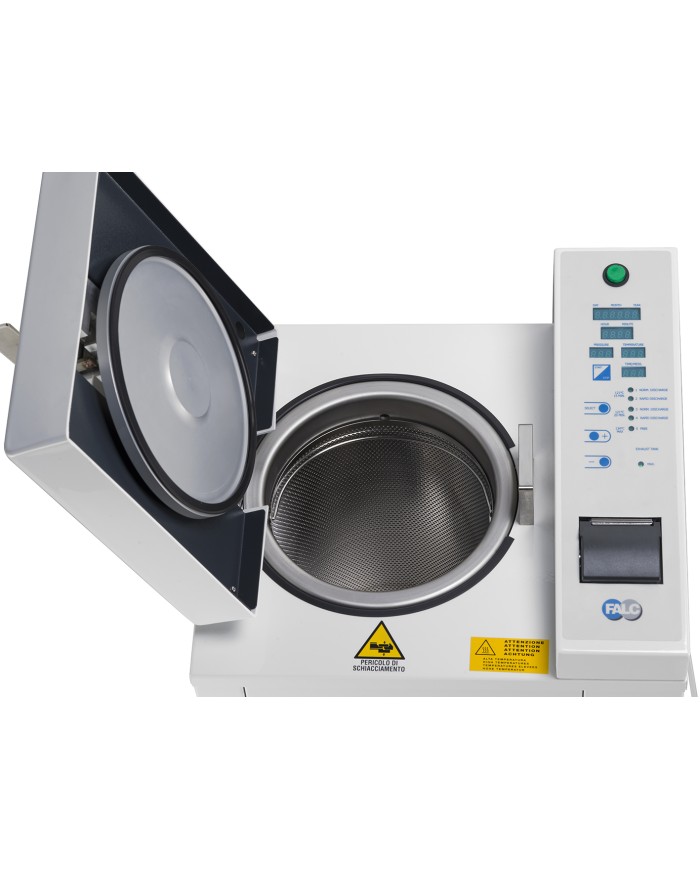

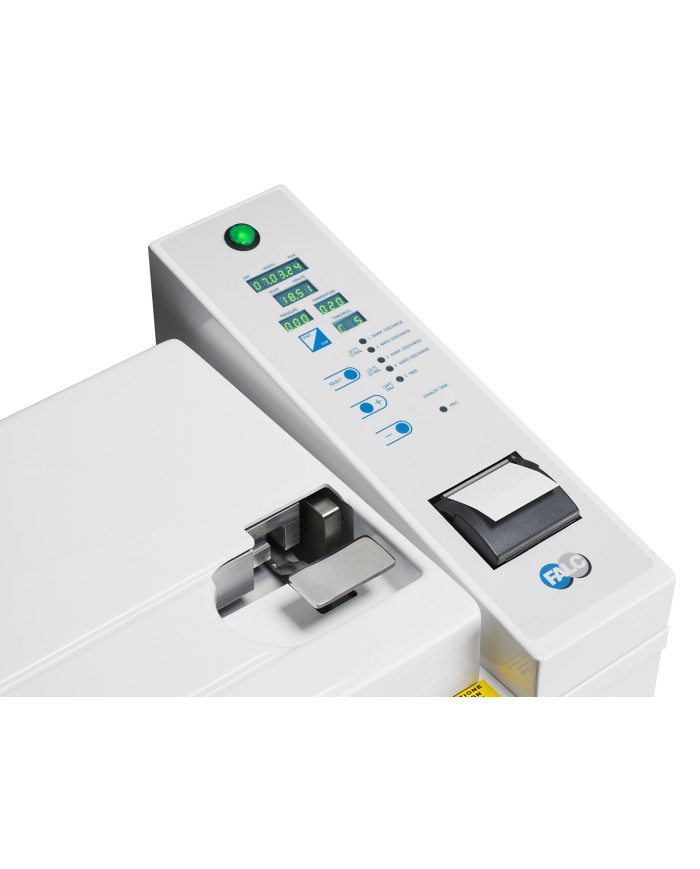

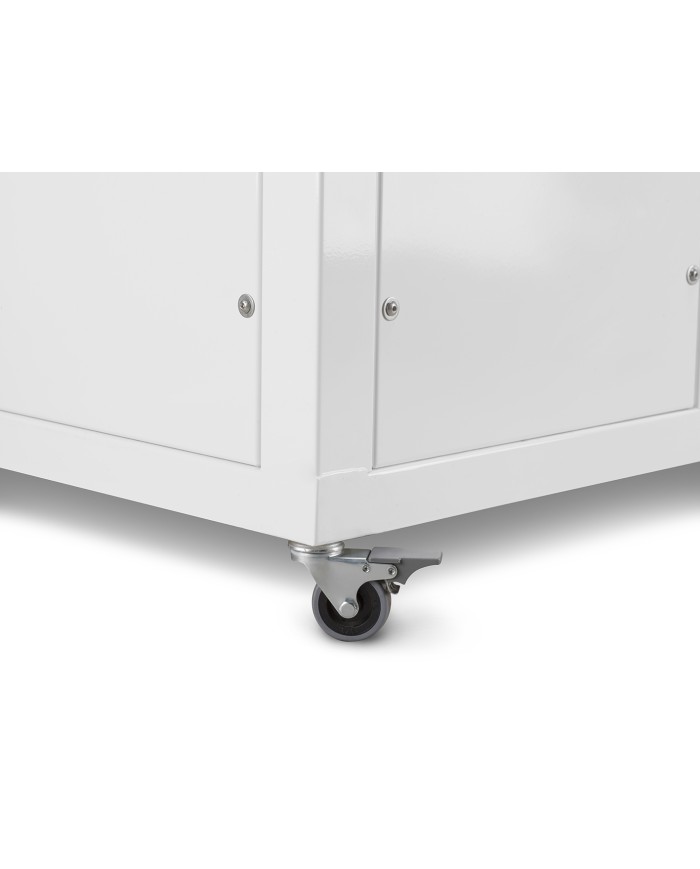

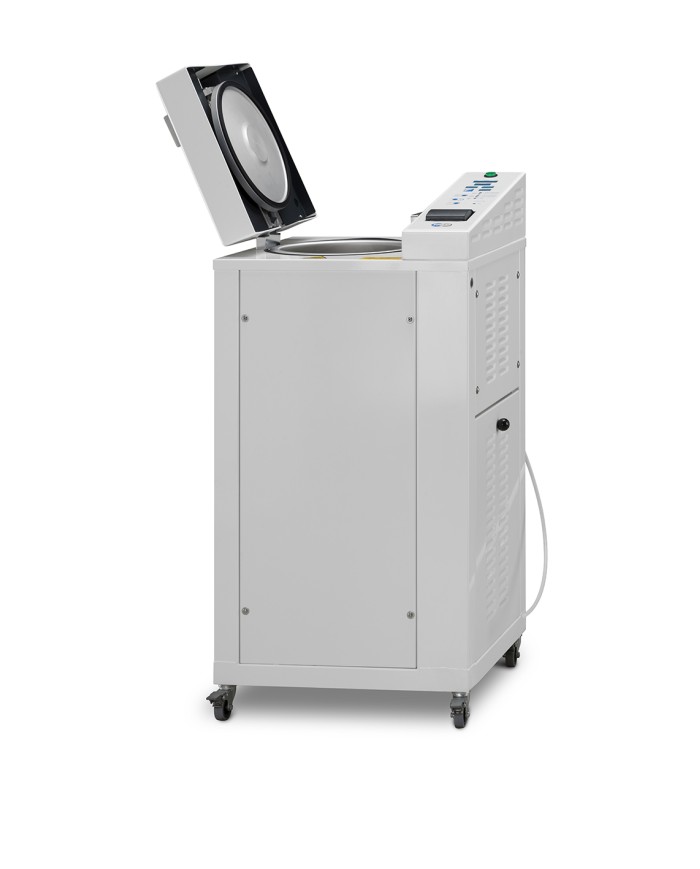

AUTOCLAVI DA PAVIMENTO ATV 80 - 24 LT
The ATV 80 autoclave is a vertically loaded instrument for the sterilization of solids and liquids.
This model represents the perfect balance between compactness and efficiency thanks to its 24-liter chamber.

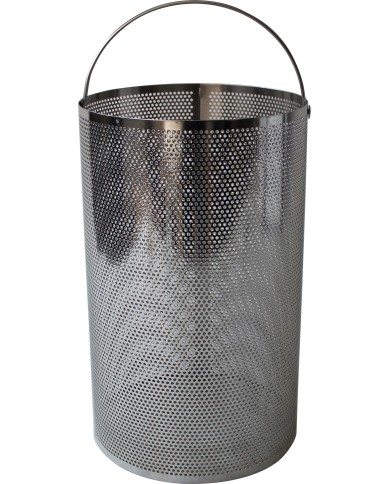

The basket is included.
• Sterilization cycles:
- 4 pre-set cycles: 121°C - 135°C cycles for unwrapped solid and liquids
- 1 customized cycle
• Pressure safety valve preset to 3 bar
• Over temperature protection
• Temperature monitoring
• Over current and short circuit protection
• Electric leakage protection
• Anti-scald chamber cover and bench
• Automatic troubleshooting
• Safety devices: mechanical lock to insert before starting the cycle
• Microcomputer control system monitors sterilization process.
• Saturated steam monitoring creates a sterilization envronment and discharges the steam
• Built-in printer detecting the time, pressure and temperature parameters, serial number of the autoclave, the selected program, the progressive cycle counts, date, month, year
• Manual water filling
Scheda tecnica
Pressione Di Lavoro | 2.2 Mpa |
---|---|
Codice | 608.1000.80 |
Dimensioni interne (LxPxA) | mm 243 x 500 |
Dimensioni esterne (LxPxA) | mm 500 x 450 x 950 |
Alimentazione | 230 - Hz 50/60 |
Peso | Kg 60 |
Resistenza | W 2500 |
Volume camera | lt 24 |
Materiale camera | AISI 304 acciaio inox |
Temperatura di sterilizzazione | 100-136°C |
Gamma di tempi di sterilizzazione | 1-99 min |
Potenza | 2500 W |
Acqua necessaria | demineralizzata o distillata |
Ambiente di lavoro | 5-45°C, umidità relativa 10-85% |
Dimensioni cestello | 240x430 mm |
Apertura coperchio | sollevare (su e giù) |
