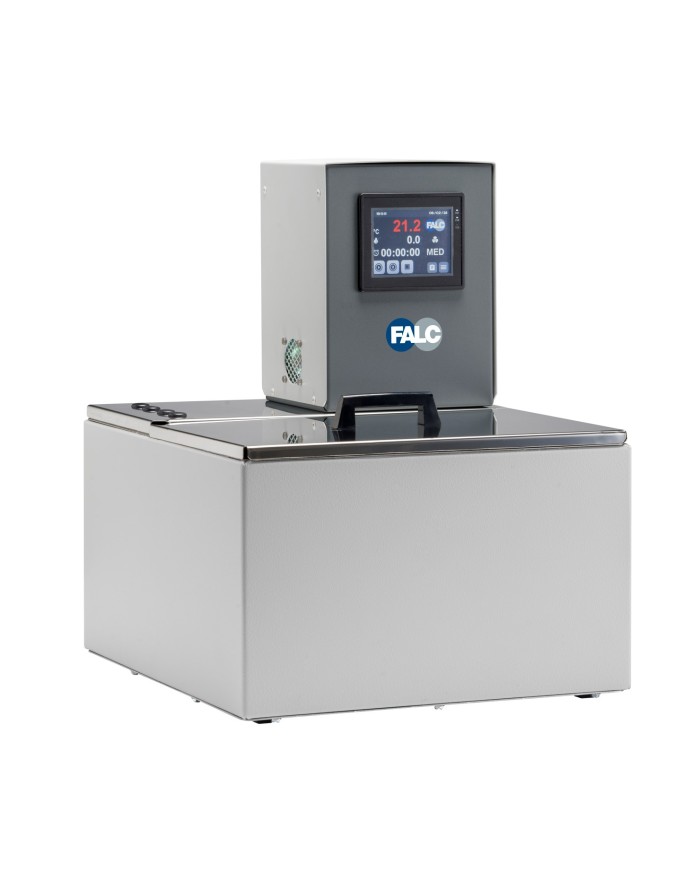

Circolation bath with tank 5 lt - SB 5T
€0.00
Tax included
The SB 5 circulating bath with 5 liters tank is a device used to maintain a constant temperature of a liquid inside and outside a container. This type of bath is commonly used in laboratories to perform experiments requiring a constant temperature higher than ambient.
This instrument can be used in two ways:
- For thermostatting closed external circuits up to 150°C.
- For thermostatting applications in the bath up to 150°C.
These circulating baths are employed in many applications in the chemical-pharmaceutical sector as well as in environmental analysis.
Description
Product Details

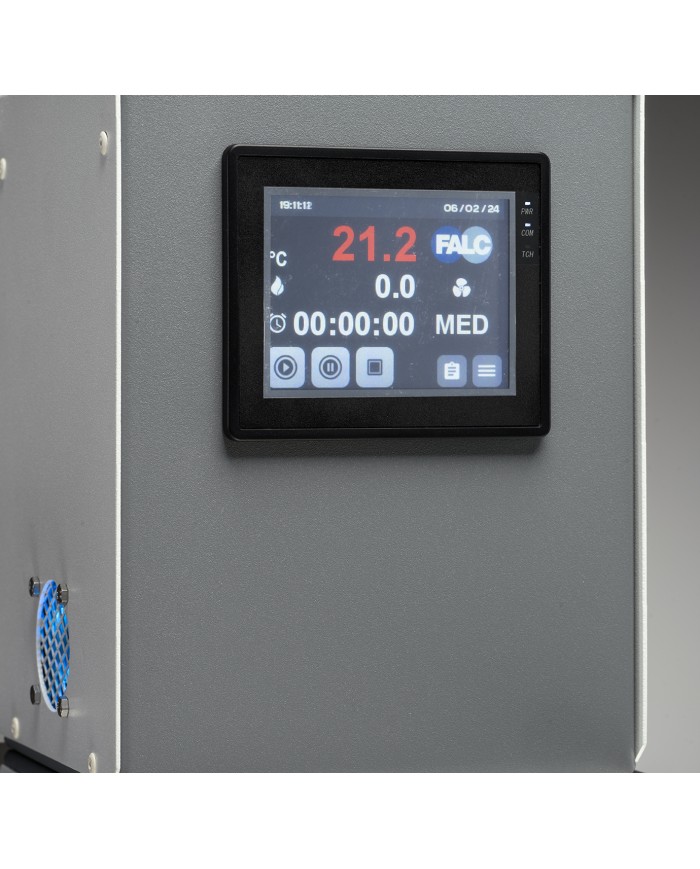

- LCD touchscreen display
- Stainless steel 18/8 tank in a single mold
- Digital timer
- Provision for simultaneous bath agitation and external circulation.
- Time starts counting when the instrument reaches the set temperature.
- Easy access for keeping the instrument clean and efficient.
- 4 language settings (Italian, English, French, Spanish)
- Program saving function (temperature/maintenance/pump speed)
- Programmable delayed start (day hour)
612.1029.06
Data sheet
| Item | 612.1029.06 |
|---|---|
| Temperature | +5 amb. to +150 |
| Precision | 0.5 |
| Risolution | 0.1°C |
| Heating power | W 1300 |
| Internal dimension (LxWxH) | mm 250x100x150 |
| External dimension (LxWxH) | mm 330x180x450 |
| Power | V/HZ 230/50-60 |
| Weight | Kg 7 |
| Drain with valve | no |
| Security class | DIN 12879 - 2 |
| Protection class | IP 30 |
| Pump pressure mbar 190 | lt/min 9 |
| Water head mt 1,8 | lt/min 7.8 |
| Tank dimensions | mm 160x150x150 |
| Capacity | lt 5 |
| Digital Timer | 99:59:59 or ∞ |
