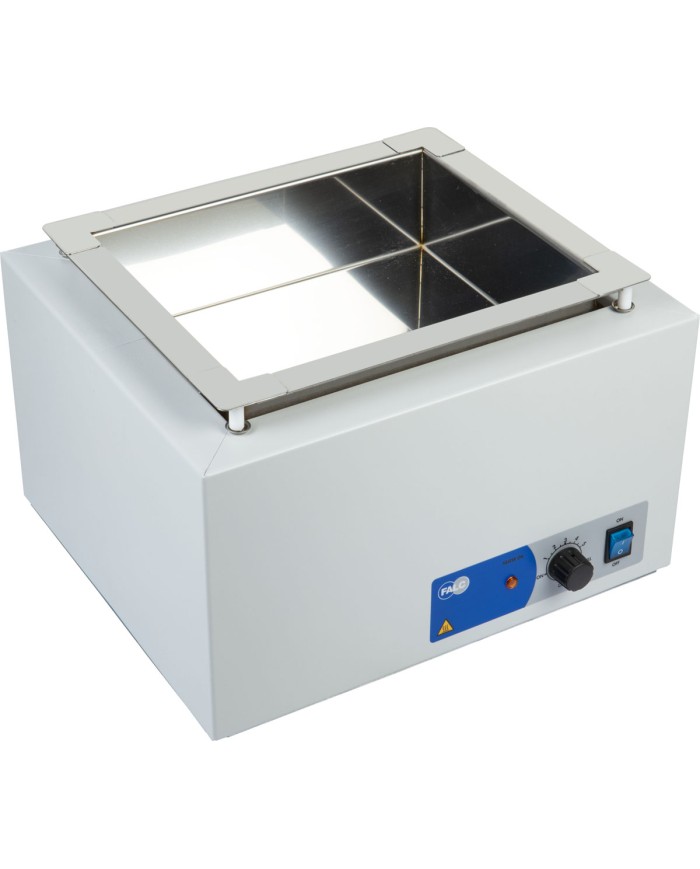

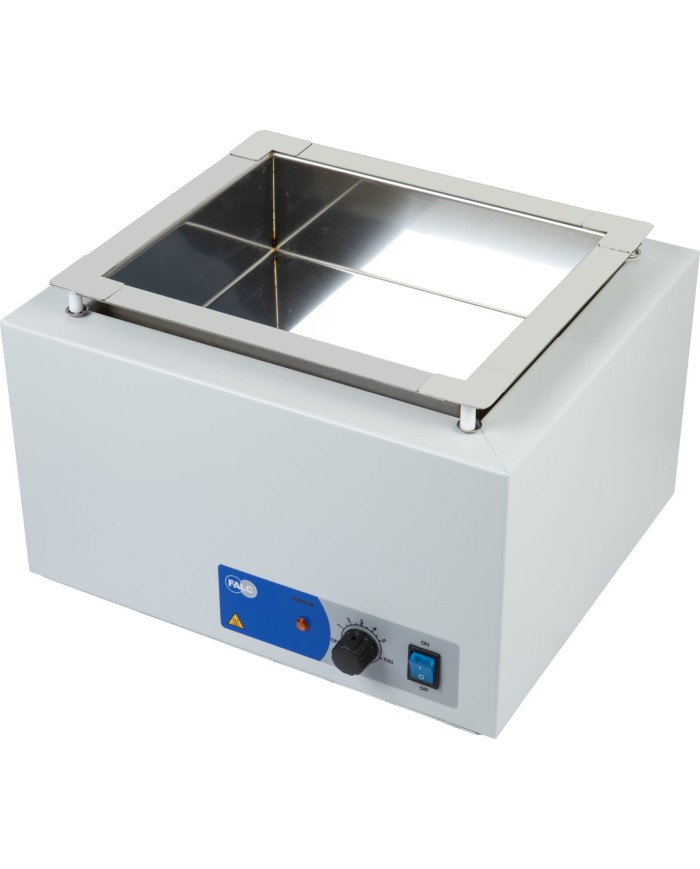

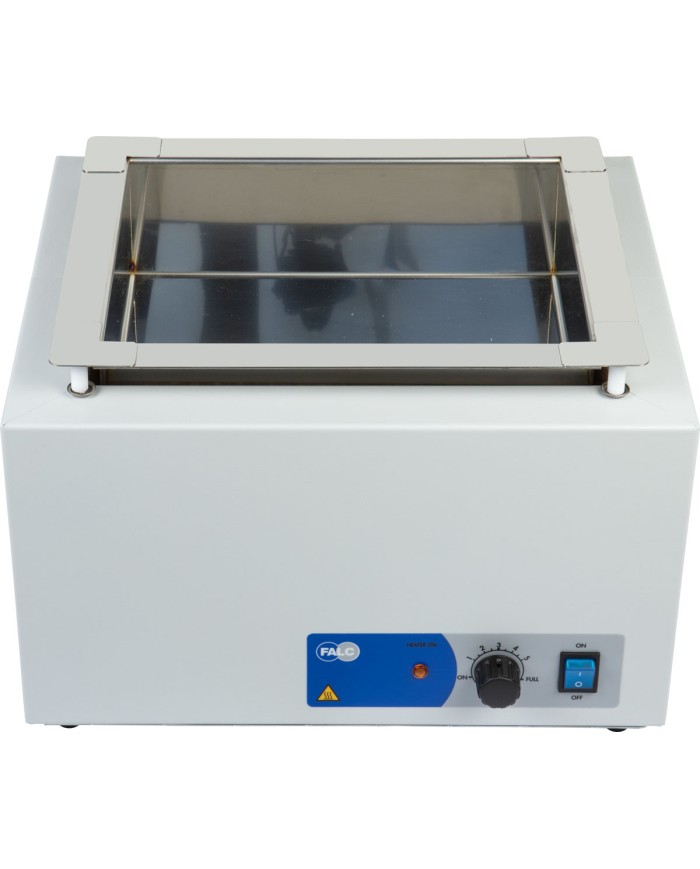

Sand Bath 5 lt - S70
FALC's sand baths are ideal for the homogenous heating of the contents in the baths. The external structure is made of steel which has been oven coated with acid-resistant epoxy paint whilst the inner tanks are made of extra thick 304 stainless steel.
FALC's sand baths are ideal for the homogenous heating of the contents in the baths. The external structure is made of steel which has been oven coated with acid-resistant epoxy paint whilst the inner tanks are made of extra thick 304 stainless steel.
The whole structure is insulated with a 40 mm thick layer of ceramic fibre which ensures that the temperature outside the apparatus remains at room temperature.
Heating is provided by iron-clad stainless steel heating elements.
Temperature regulation and control are provided by a bimetallic temperature regulation on a numbered scale. An illuminated green ON/OFF switch is provided as standard.
Data sheet
Item | 614.1037.07 |
---|---|
Temperature | +450°C |
Precision | 5 |
Heating power | W 1000 |
Internal dimension (LxWxH) | mm 290x230x90 |
External dimension (LxWxH) | mm 410x400x270 |
Power | V/Hz 230/50-60 |
Weight | Kg 12.6 |
Protection class | IP 30 |
Capacity | lt 6 |
Sand needed | 6 kg |
