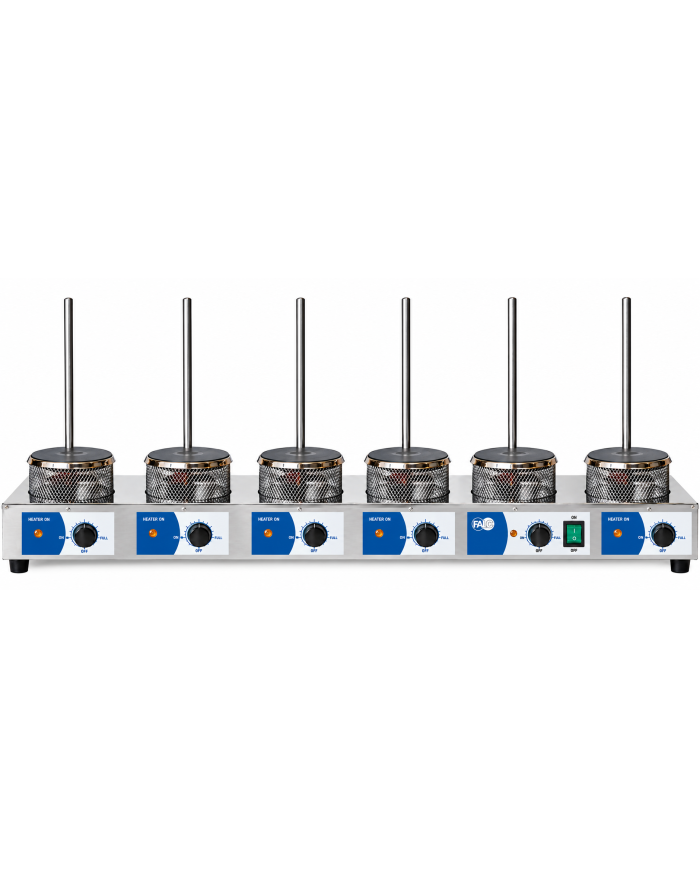

6-position cast iron hotplate CIR 6-120
€0.00
Tax included
Cast iron plate heater by FALC with built – in heating resistance.
Description
Product Details
Cast iron plate heater by FALC with built – in heating resistance.
Aluminium body oven coated with acid proof epoxy paint for simple models; stainless steel 18/8 structure for multiposition models. Front panel provided with ON / OFF switch and green light and with a knob for each plate for adjusting and controlling a biometallic step thermostat. The relevant warning light indicates that the plate is working.
N.B. The max indicated temperatures refer to plate N
.B. Multiposition plates are fitted with Ø 10 x 500 mm. rod.
623.0436.12
Data sheet
| Item | 623.0436.12 |
|---|---|
| External dimension (LxWxH) | mm 985x270x160 |
| Power | V/HZ 230/50-60 |
| Weight | Kg 9.4 |
| Protection class | IP 32 |
| Heating elements power | mm 120 |
| Plate Temperature | +500 |
| Heating places | n 6 |
| Precision on the plate | ± 5 |
| Heating res. capacity | W 4200 |
