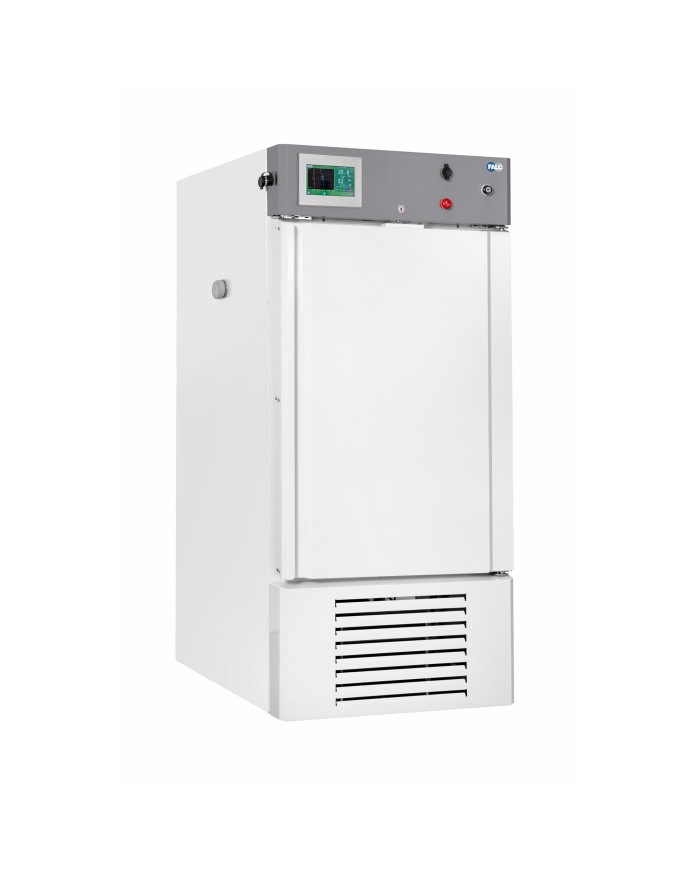

FCC-L 250 3S - Biogrowth chamber of 250 lt with lights on both sides and door without humidity
€0.00
Tax included
Designed with simplicity, functionality, and reliability in mind, they offer the ideal solution for laboratories requiring a versatile and user-friendly instrument for routine applications, including plant growth, seed germination, in vitro culture, and experimental research.
Available in a wide range of capacities and configurations, FCC-L Growth Chambers feature an AISI 304 stainless steel interior and an advanced forced-air circulation system that ensures outstanding temperature throughout the chamber. The environmentally friendly R-290 refrigeration system, combined with ultrasonic humidification, guarantees stable operating conditions, high performance, and reduced energy consumption.
The integrated LED lighting system provides homogeneous light distribution across the growing area, while the programmable day/night photoperiod accurately reproduces natural lighting cycles. To meet different application requirements, LED lighting can be configured on the door, side walls, or directly on the shelves, ensuring maximum flexibility for a wide variety of cultivation and research protocols.
Description
Product Details
Fields of applications
- Plant growth
- Seed germination
- Plant cell and tissue culture
- Chemical industry
- Tests requiring controlled temperature and lighting
- Plant genetic manipulation
- Protoplast and cell cultivation
- Insect incubation and breeding
- Chemical and pharmaceutical industries
- Research laboratories
- Quality control testing
- Plant biotechnology
- Forestry and timber industry
- Cosmetic industry
Standard features

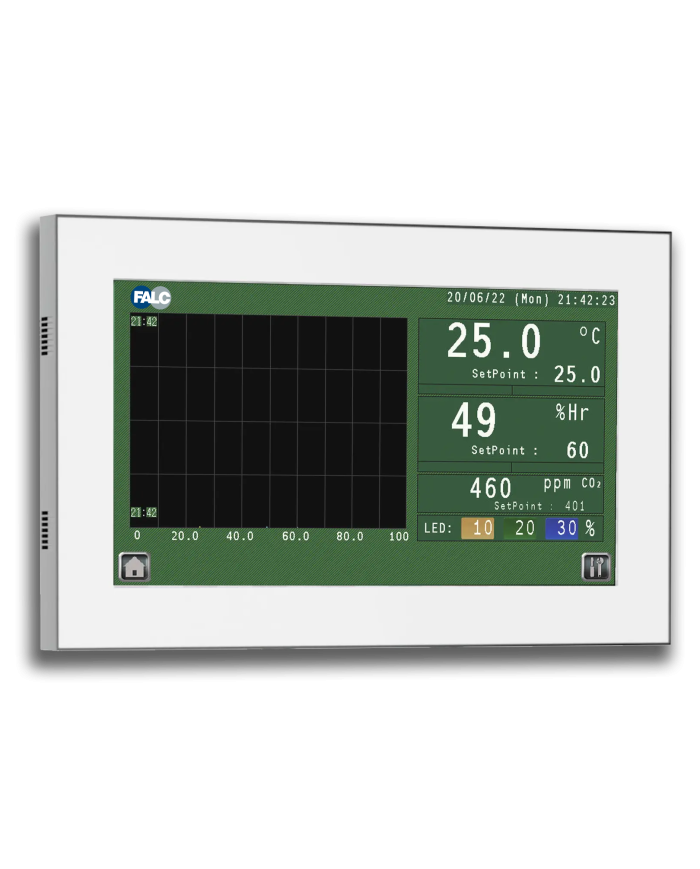

- Touchscreen controller
- 7" full-colour graphic display
- Integrated data logger
- Vertical air circulation
- Solid door
- Air-cooled refrigeration system using environmentally friendly R-290 refrigerant
- Neutral white LED lighting (4000 K) with light intensity up to 220 μmol/m²/s
- Programmable day/night photoperiod
- AISI 304 stainless steel interior
- Epoxy-coated steel exterior
- Perforated stainless steel shelves included
- Ø40 mm access port
- USB port
- Three-level password protection
- MODBUS TCP/IP communication port
- Potential-free contact
- Battery backup: 24 hours (48 hours optional)
- Power failure alarm
- Audible and visual alarms
- Lockable door with key
Optional features
- Custom light spectra
- Variable spectrum LED lighting
- Digital quantum light sensor
- PAR spectral meter
- PAR meter
- Programming and monitoring software (FALC BioCONTROL SUITE)
- Fresh air supply system
- Automatic CO₂ control system
- Damper for fresh air supply control
- 4 adjustable wheels
- Internal glass door
- External glass door
- Water tank
- Water purification system
- Epoxy-coated steel or AISI 316 stainless steel interior
- AISI 304 stainless steel exterior
- Dual internal power socket
- Remote alarm transmission
- Integrated shaker
- Decontamination system
- Water pump
- Reinforced telescopic shelves
- Transparent shelves
701.2102.02/3
New
Data sheet
| Capacity | 250 lt |
|---|---|
| Temperature uniformity without humidity | +/-1 °C at +27°C +/-0.5°C at +40°C |
| Temperature range without humidity | +10°C to +55°C (Optional: +4/0/-10/-20/-30°C) |
| Stability of temperature without humidity | +/-0.3 °C at +27°C +/-0.5°C at +40°C |
| Controller | Touchscreen display |
| Ventilation | Vertical |
| Material of shelves | Stainless steel (AISI 304) |
| Surface of shelves | 0.21 m2 |
| Nr of shelves | 2 |
| Maximum load | 100 Kg |
| Ports for cables/probes | ø 40 mm |
| Nr of doors | 1 |
| Type of refrigerant | R-290 |
| Ambient temperature | +10°C to +28°C |
| Dimensions of shelves | 470x443 mm |
| Power supply | 230V/50Hz (optional: 110V/60Hz or 220V/60Hz) |
| Item | 701.2102.02/3 |
| Internal dimensions | 520x468x913 mm |
| External dimensions | 675x765x1540 mm |
| Weight | 135 Kg |
| Power | 1400 W |
| Clear door (door opening) | 560x855 mm |
| Insulation thickness | 55 mm |
