Analog overhead stirrer up to 20lt - AT-M 20
€0.00
Tax included

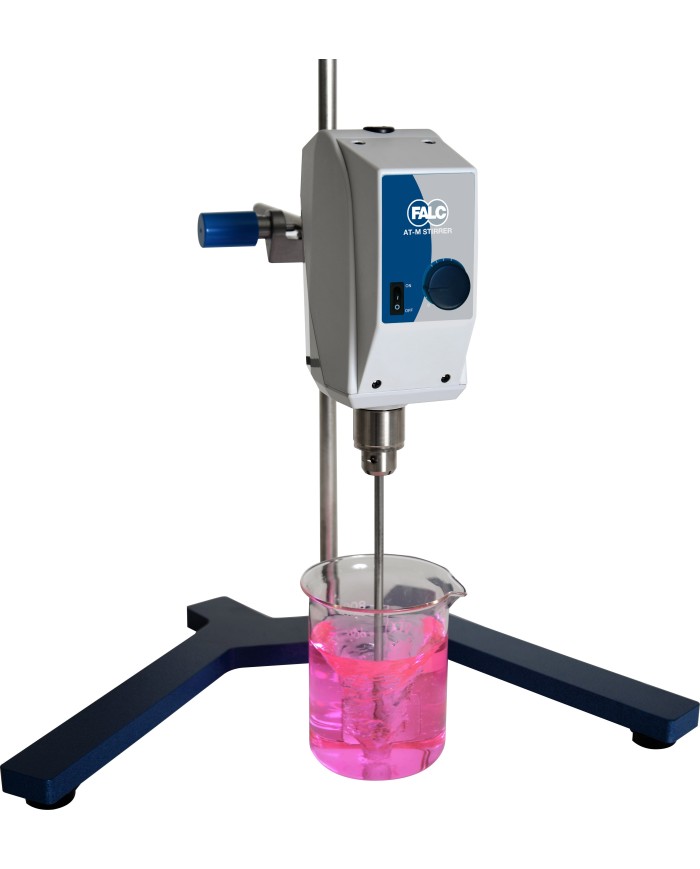

Analog overhead stirrer AT-M 20 is an instrument stirring mechanically a liquid with maximum viscosity of 50.000 mPas up to 20lt.
Description
Product Details
It is suitable for routine and continuous works
Overload protection and over-heat protection for motor
Adjustable spindle to fix rods.
Ros, support, stirring shaft and clamp are not included with instrument. Choose them among accessories according to application.
605.0150.12
Data sheet
Item | 605.0150.12 |
---|---|
Power | V/HZ 230/50-60 |
Weight | Kg 5.3 |
Dimension | mm 90x145x180 |
Power supply | W 83/120 120 |
Protection class | IP 43 - 40 |
Display | Analogica |
Max stirring capacity | Lt 20 |
Viscosity | mPas 50000 |
Torque tension | Ncm 145 |
Rod diameter | mm 10 |
Variable speed | Rpm 200-3000 |
