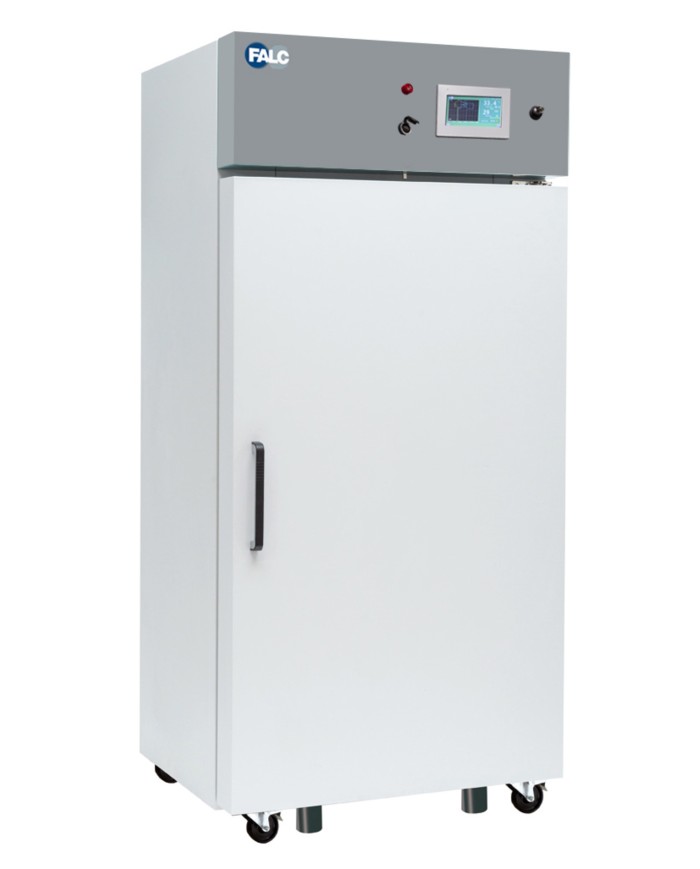

Climatic test chamber with humidity 700 lt - FCC-H 700

FIELDS OF APPLICATION

• Food industry
• Confectionary industry
• Laboratory testing
• Analytical laboratory
• Pharmaceutical industry
• Quality test
• Environmental test
• Construction materials industry
• Calibration laboratory
• Biotechnology
• Texile industry
• Automotive industry
• Electronic industry
• Plastic industry

STANDARD FEATURES

• Cooling system controller by solenoid electrovalves
• Safety thermostat, to protect the samples against high temperatures (optionally low temperatures)
• System setting protected by password
• Key lock on the door

• Temperature range from +4°C to +60°C (optionally from -10/-20/-30°C to +60°C without humidity control)
• Models include forced air refrigeration (distributed uniformly vertically), and have high temperature homogeneity inside of the chamber
• Ultrasound humidity generator, introducing microscopic water drops inside of the chamber at room temperature (electrode system optionally)
• Condensation drying system by cooling
• Independent cooling and heating systems
• Tropicalization treatment, to allow work up to +32°C room temperature

• Internal glass door, with hermetic closing (models up to -10°/-20°/-30°C do not include internal glass door)
• Solid external door with opening aids and big sized handle (double glass door optionally)
• Hermetic compressor built over dampers to reduce noise levels
• AISI 304 stainless steel internal finish
• Epoxy coated steel external finish
• Rounded corners for easy cleaning
• Heated door frame, to ensure an ice free door closing for models up to -10°/-20°/-30°C
• Access port to introduce cables and external instruments

• USB port to store system data.
• High density of 60 mm polyurethane insulation (CFC and HCFC free) high density polyurethane
• R404 (CFC and HCFC free) biodegradable cooling gas
• Magnetic gasket on the external door, to ensure a better door closing
• 4 wheels for easy movement with height-adjustable feet

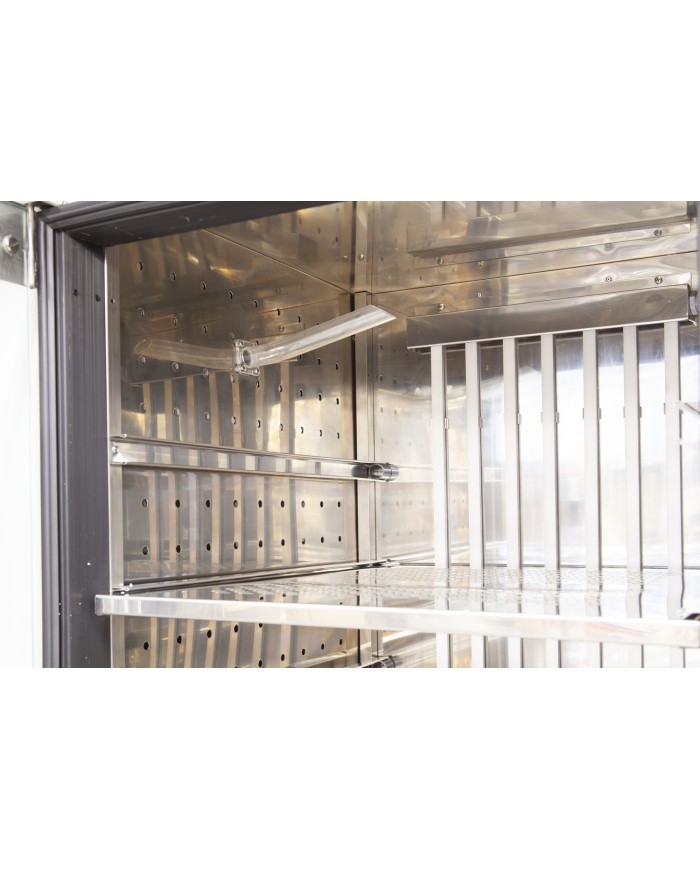

• Height-adjustable perforated stainless steel shelves

• Including series 4000 controller, with graphic temperature representation

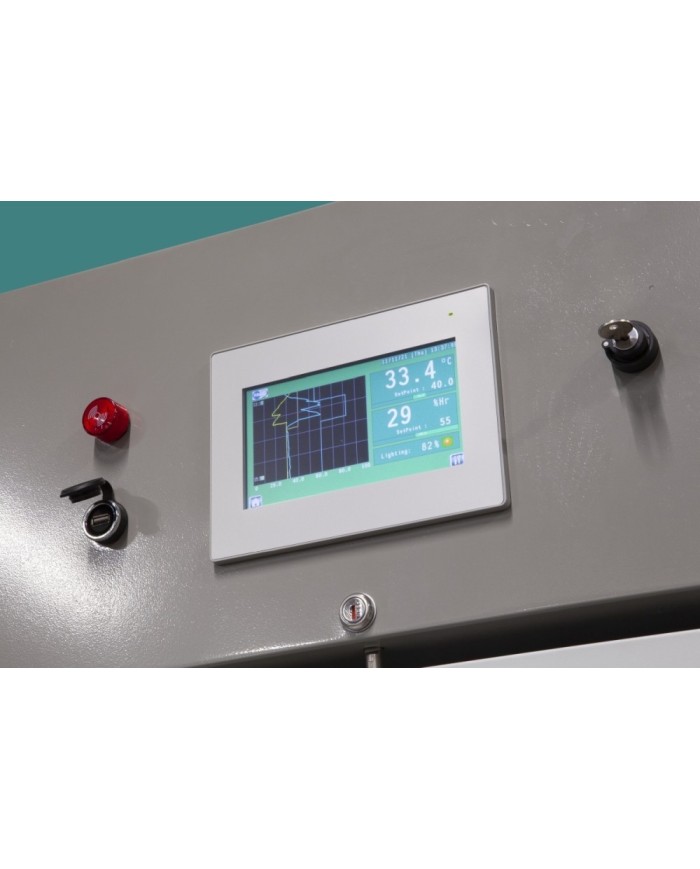

• Microprocessor (4.3'' touchscreen) for control parameters with PID system (the temperature through a NTC probe)
• Control system with battery backup and automatic recharge, for up to 48h
• The controller stores the max/min temperature and/or humidity values with their graphical representation.
• Audible and visible independent alarms for maximum and minimum temperature, with NiCd battery support backup for more than 48h of battery life (72h optionally)
• PC software
• Ethernet output

OPTIONAL ACCESSORIES

• Temperature range from +4°C to +60°C (optionally from -10/-20/-30°C to +60°C without humidity control)
• Humidity generator up to +95°C RH
• Air drying system up to 15% RH at +4°C
• Additional access ports to introduce cables and external instruments
• Thermal glass door, with heated frame in models with humidity control or lower temperatures
• External stainless steel finish
• Plugs inside of the chamber
• Potential free output for remote alarm control
• UV light tubes for sterilization
• Telescopic trays to locate instruments
• Printer for temperature and humidity data
• GSM phone alarm module
• Battery backup
