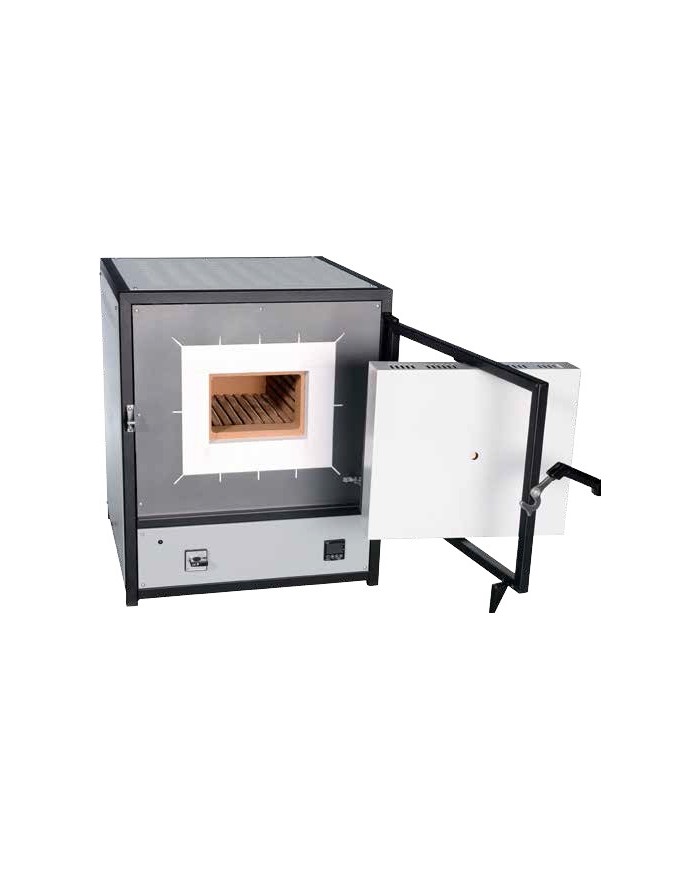

Chamber furnace 4 lt - FC 4
€0.00
Tax included
Universal precise laboratory chamber furnaces are designed for materials heat treatment, ceramic and stoneware samples firing.
Description
Product Details
CHAMBER LABORATORY FURNACES
Universal precise laboratory chamber furnaces are designed for materials heat treatment, ceramic and stoneware samples firing. These models are reliable with robust ceramic chamber. Furnace can be used in laboratories, medicine, educational institutions, ceramic studios, and industrial laboratories.
• Maximum temperature 1300°C
• Control panel on the underpart;
• Ceramic chamber;
• Open heating elements in the grooves;
• Bottom ceramic plates;
• Door opening on the left;
• Door safety switch.
720.9002.04
Data sheet
| Item | 720.9002.04 |
|---|---|
| Max temperature | 1300 °C |
| Internal dimension (LxWxH) | mm 120x295x100 |
| External dimension (LxWxH) | mm 440x560x500 |
| Weight | 55 Kg |
| Temperature uniformity | ± 10 °C |
| Working temperature | 1300 °C |
| Chamber material | Ceramic |
| Useful volume | 4 lt |
| Rated power | 3,7 Kw |
| Rated supply voltage | 230 V |
| Rated frequency | 50 Hz |
| Number of phases | 1 |
| Working chamber surroundings | air |
| Maximum heating- up time (without charge) | 140 min |
| Temperature stability in working chamber | ± 1 °C |
