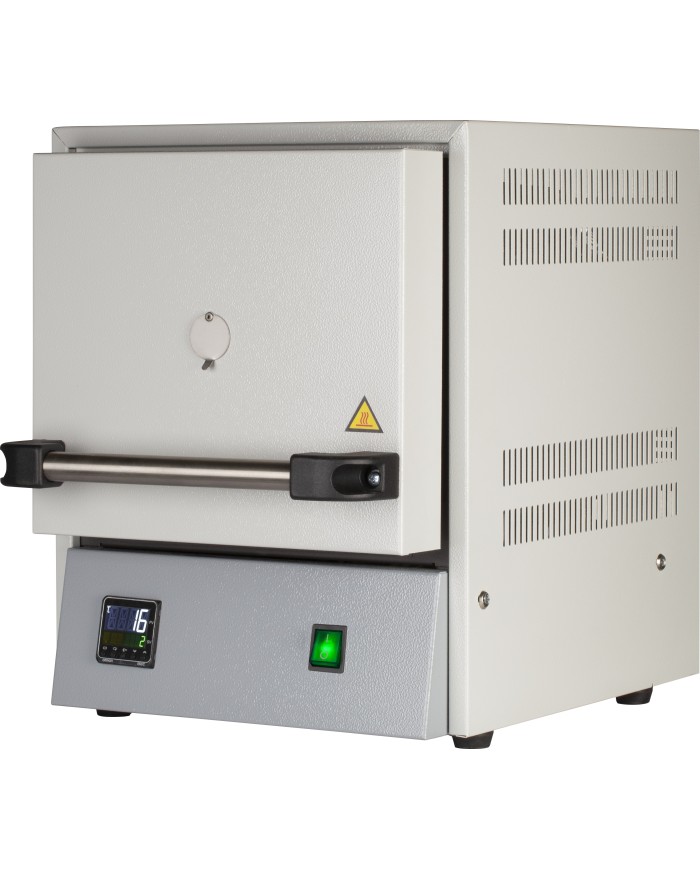

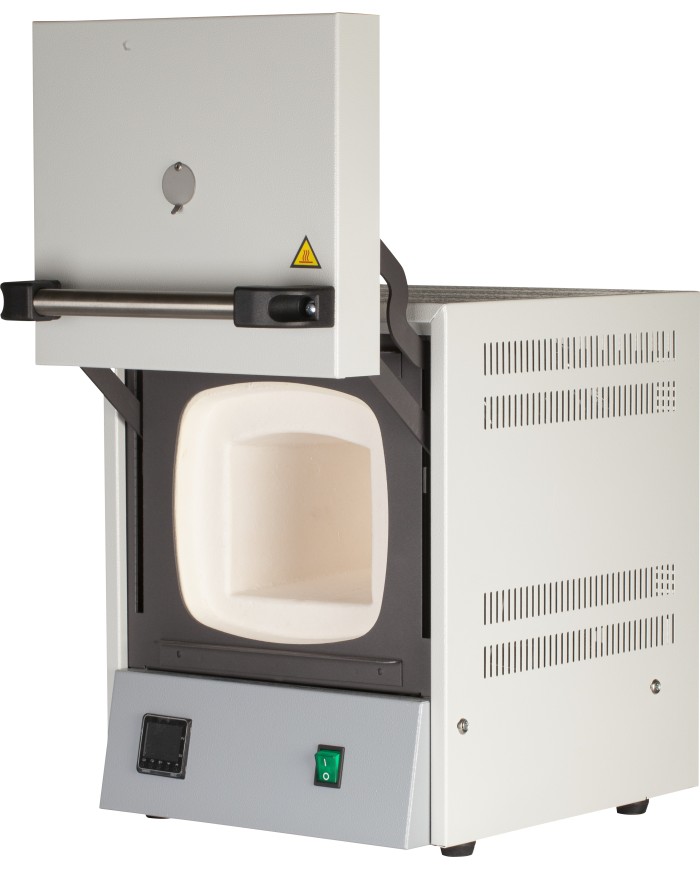

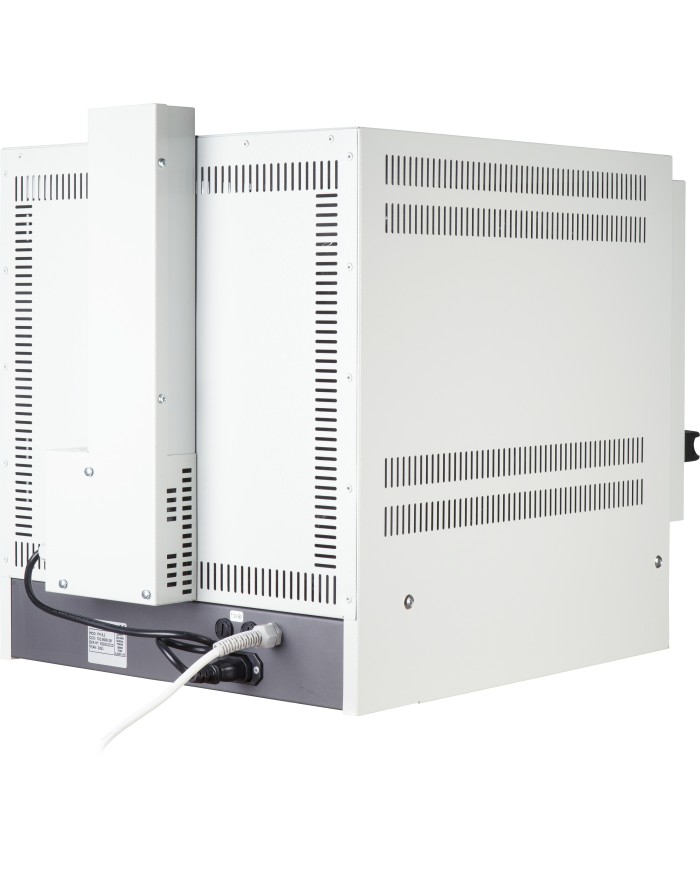

Muffle furnace 39 lt - FM 39
€0.00
Tax included
We offer a new line of muffle furnace. Now you could find 5 different sizes of universal precision laboratory electric furnace, designed for materials testing, heat treatment, ceramic and stoneware samples firing.
Description
Product Details
MUFFLE LABORATORY FURNACES
We offer a new line of muffle furnace. Now you could find 5 different sizes of universal precision laboratory electric furnace, designed for materials testing, heat treatment, ceramic and stoneware samples firing. The furnace can be used in laboratories, educational institutions, ceramic studios and industrial laboratories.
• Maximum temperature 1100°C
• High thermal efficiency vacuumed ceramic fiber chamber
• Heating elements on all four sides embedded in fiber
• High quality thermoinsulation materials used throughout
• Microprocessor temperature controller
• Door safety interlock switch
• Ceramic bottom plate
• Fast heating time due to low thermal mass construction
• Good stability and uniformity
720.9000.39
Data sheet
| Item | 720.9000.39 |
|---|---|
| Max temperature | 1100 °C |
| Internal dimension (LxWxH) | mm 315x495x240 |
| External dimension (LxWxH) | mm 650x900x740x75 |
| Weight | 75 Kg |
| Temperature uniformity | ± 10 °C |
| Working temperature | 50-1100 °C |
| Useful volume | 39 lt |
| Rated power | 6 Kw |
| Rated supply voltage | 400 V |
| Rated frequency | 50 Hz |
| Number of phases | 3 |
| Working chamber material | Fibre muffle |
| Maximum heating- up time (without charge) | 50 min |
| Temperature stability in working chamber | ± 1 °C |
