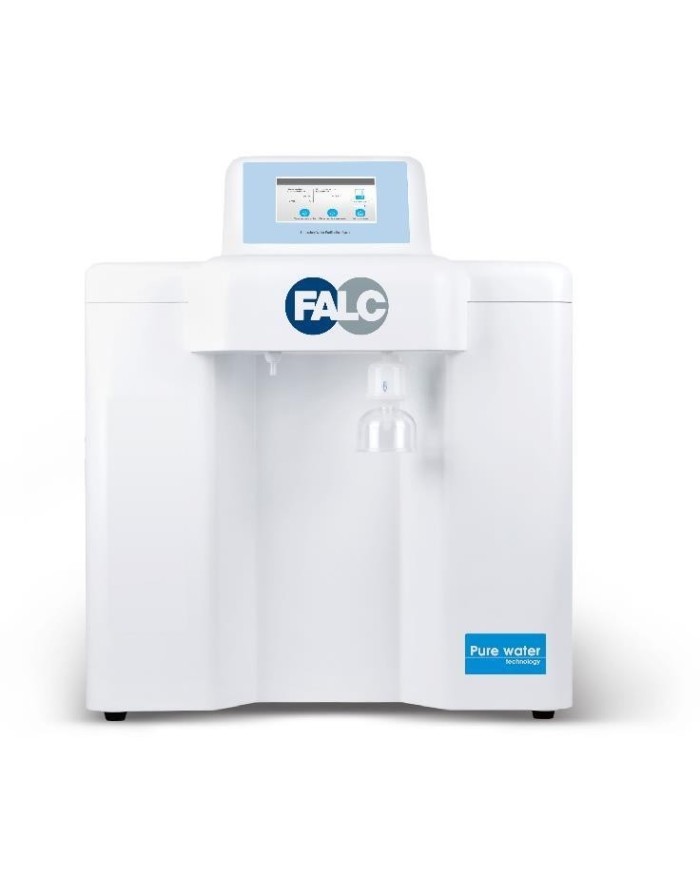

Professional water purification systems for ultrapure water 15 lt - Master Touch S15UV

Tax included

MASTER TOUCH ensures high quality ultrapure water, in addition to reverse osmosis water. This system has a display monitoring running status, getting data downloading from SD card or through USB interface. Double wave lenght UV lamps have been chosen to do TOC analisys and to reduce bacteria.

Download:   Brochure
SKU: 636.0805.01

▪   5.0 inch colorful high-resolution touch screen (16:9) controlling system, achieve finger-touch new experiece.

▪   3 way online water quality sensor, detect the quality of feed water, RO water, deionized water, or ultrapure water respectively. And warn once water quality’s standard exceeding.

▪   2 way flow sensor, achieve quantified dispensing of RO water, deionized water, or ultrapure water.

▪   All Cartridges replacing alarm function, based on time and water quality,show cartridges’used and residual life.

▪   Multiple alarm function: no feedwater, full water, water quality’s standard exceeding, and cartridge life ending.

▪  Auto self-flushing of RO membrane function, extend RO membrane’s life.

▪  Auto running data storing function with built-in SD card and data can be exported through the USB interface.

▪  System sanitizing procedure, achieve the disinfection of ultrapure water’s tube and valve.

▪  System circulation function, achieve ultrapure water’s circulation to keep top quality of ultrapure water.

▪  Level II password, protect all the parameters setting, andprohibit any unauthorized setting change.

▪  Comprenhensive information query and management function, master system status, water quality, cartridges usage and alarm function.

▪  Whole plastic shell with high-strength, avoid rusting and keep clean, to meet GLP standard.

▪  Tube and adapter with NSF authorization and top quality, reduce TOC level andassure ultrapure water’s quality.

▪  Optimized pretreatment (including PP fiber, KDF and active carbon cartridge), effectively protect RO membrane.

▪  RO modulewith DOW’s membrane, ensure long life, stable operation and high desalinization rate.

▪  4 in 1 ultrapure cartridge (can be divided to 4 independent cartridge) with DOW’s top polishing resin, ensure ultrapure water’s quality up to 18.2 MΩ.cm, with the lowest TOC level.

▪  Double wavelength (185&254nm) ultraviolet lamp module, restrain bacteria’s increase and reduce TOC.

▪  MWCO 5000D ultrafiltration module, effectively eliminate endotoxin, and suitable for precise cell cultivating and IVF. (0.45+0.1)µm double layer PES terminal disinfection filter, assure that terminal pure water is absolutely axenic

Product Details

Data sheet

Flow rateUp to 2 liters/minute (with pressure tank)
Output15 litres/hour
Pure water outlet2: reverse osmosis water, ultrapure water
Resistivity at 25°C18.2 MΩ.cmxcm
Conductivity0.0549 μs/cm
TOC*lesser than 3ppb
Bacterialesser than 0,1 cfu/ml
Particle (greater than 0,2 μm)lesser than 1/ml
Ion rejection rate96-99% new membraneRO
Organic rejection rategreater than 99% when MW greater than 200 Dalton
Particle and bacteria rejection rategreater than 99%
Feed water requirementsTapwater,temperature:5-45°C,pressure:1.0-4.0Kgf/cm x cm
Dimension and weightLength×Width×Height: 500 x 360 x 540mm Weight : about 20 kg
Electrical requirementsAC100-240V, 50/60 Hz
Power120 W
Standard configurationMain body(Including 1 set of cartridge)+15 liters pressure tank
