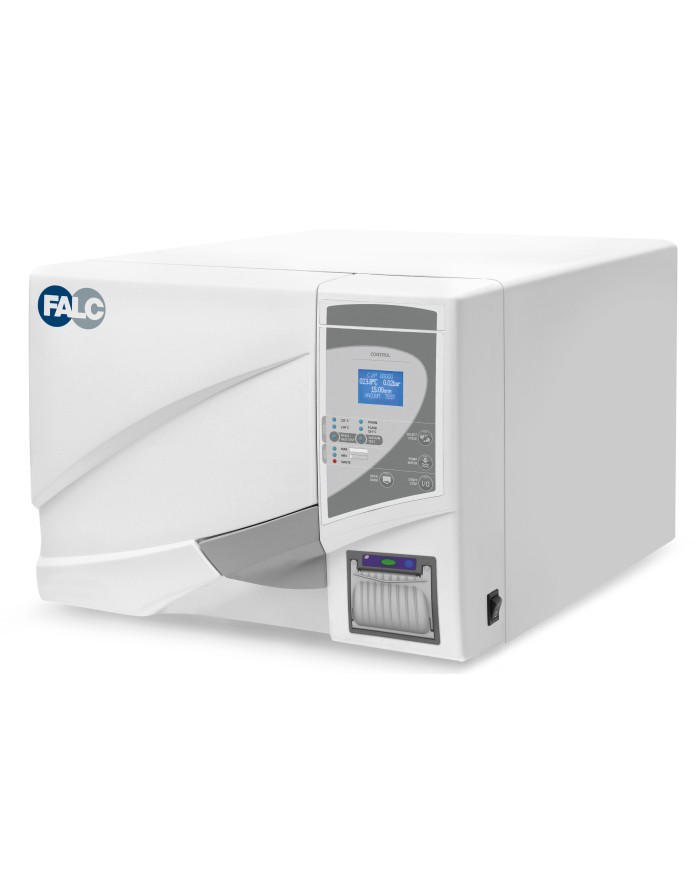

AUTOCLAVES CLASS B ATV 50 - 16 LT

• Pre-set cycles:

• 121°C cycle: for thermoplastic, hallow bodies, solid and ferrous materials (wrapped and unwrapped);
• 134°C classic cycle: for solid and ferrous materials (wrapped and unwrapped);
• 134°C “flash” cycle for quick sterilization cycles (unwrapped);
• 134°C “prion” cycle for Cruetzenfeld & Jacobs disease (wrapped).

• AISI 304 stainless steel circular chamber.

• 5 kg Maximum load per cycle.

• Forced ventilation system.

• Insulation of the chamber with certified ceramic material.

• Rear board with prefitting and automatic water filling and discharge.

• Constantly monitored cycles to detect uncommon feature.

• Pre-set cycles to guarantee a safe sterilization.

• Ergonomic structure and easy to use.

• Printer included.

• Manually operated door.

• Deionization connection.

• Night cycle.

• ID microprocessor.

• Automatic barometric alignment system.

• Water filling:

• automatic water filling from water supply by external purification device;
• automatic water filling from external tank with purified water.

• Sterilization process:

• fractional vacuum: pump system alternates negative pressure (vacuum) phases with positive pressure phases;
• preheating system: parameters, temperature and pressure are set;
• sterilization: all the micro-organisms are eliminated. Pressure, temperature and time shall be perfectly monitored. A double-probe, microprocessor-controlled system controlled by PID;
• drying: perfect drying ensures high sterility

• Protected tray holder to safeguard against contact between load and chamber.

• Safety thermostat.

• Certified safety valve.

• 3 safety devices on the door:

• mechanic and electro-magnetic device: it blocks the door opening up to the end of the cycle;
• electrical device: it operates when the door is forcibly opened;
• dynamic device: the door gasket does not allow opening of the door if there is pressure within the chamber.
