VERTICAL AUTOCLAVE 50 LT - ATV-E 500
€0.00
Tax included
The ATV-E 500 vertical autoclave is designed for general applications, with 2 preset cycles for solid and liquid materials.
This unit represents a quality product, intended for users who seek reliable functionality in a simple and straightforward way, offering an excellent value for money.

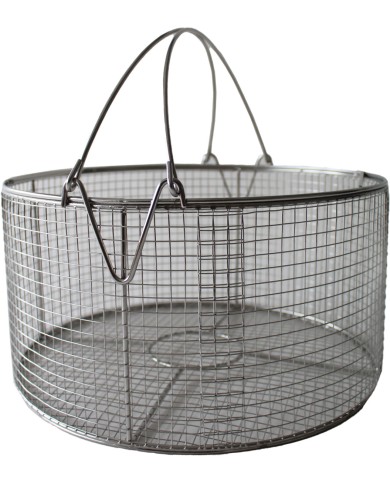

The autoclave comes with 2 baskets, ready for immediate use in the laboratory.
Description
Product Details
Vertical loading autoclave for solid and liquid materials
Sterilization Cycles:
- Solid materials cycle
- Liquid materials cycle
Protections:
- Burn protection
- Overpressure protection
- Safety valve
- Overheating protection
- Overvoltage and short-circuit protection
- Electric leakage protection
- Thermally insulated lid and casing
- Alarm notification with 13 detection procedures
Other Features:

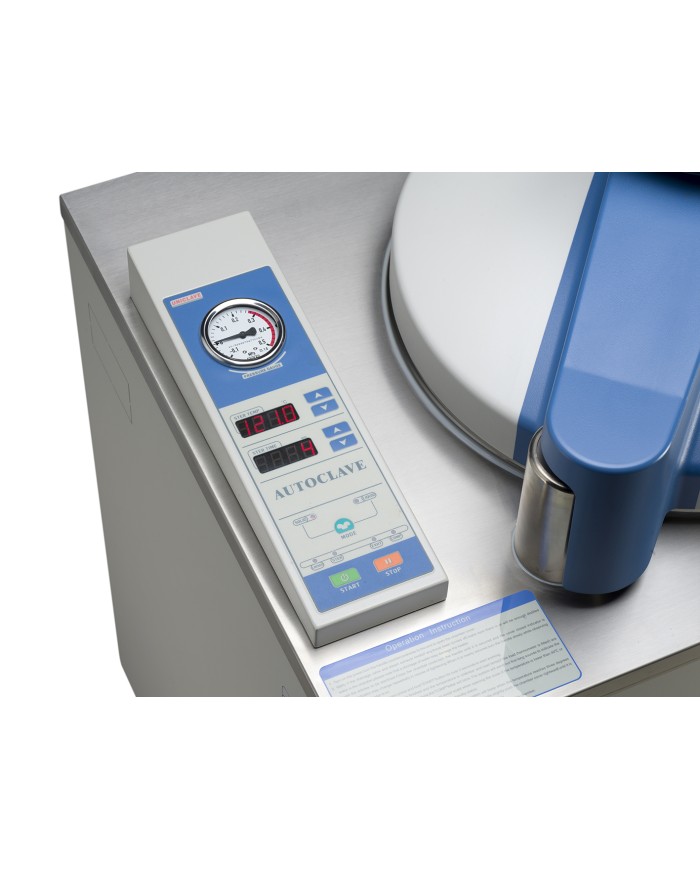

- System microcomputer control
- Automatic monitoring of cold air discharge to ensure a pure steam sterilization environment
- Manual water filling
2 Safety Devices:
- Manual interlock to prevent improper use
- Lid locking with safety pressure mechanism
608.1001.05
Data sheet
| Item | 608.1001.05 |
|---|---|
| Power | V/HZ 220-240/50-60 |
| Weight | 103 Kg |
| Capacity | 50 LT |
| Max Power | 2600 W |
| Chamber material | SUS 304 |
| Chamber Dimension (Dia*H, mm) | Ø 325x670 |
| Sterilization temperature | 105-138 °C |
| Range of sterilization time | 1-300 min |

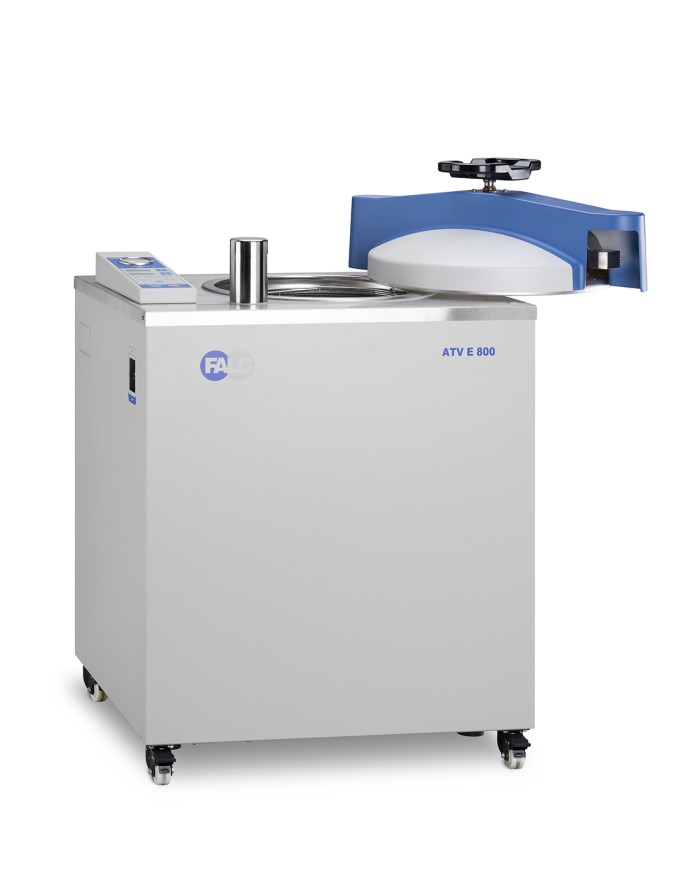

| Way of opening lid | slide (left to right) |
| Rated working pressure | 0.3 Mpa |
| Necessary water | Reverse osmosis water |
| Environment | 5-45°C, relatively humidity 10-85% |
| Max pressure | 0.27 Mpa |
| Dimensions of basket (Dia*H) | Ø300x200 mm |
| Display range of pressure gauge | 0-04 Mpa |
| Plug | 16 A |
