VERTICAL AUTOCLAVES ATV850 - 85 LT
€0.00
Tax included
The ATV 850 vertical loading autoclave is suitable for large volumes and offers various optional features.
Its multiple work cycles make it highly efficient, with an LCD display and USB port.

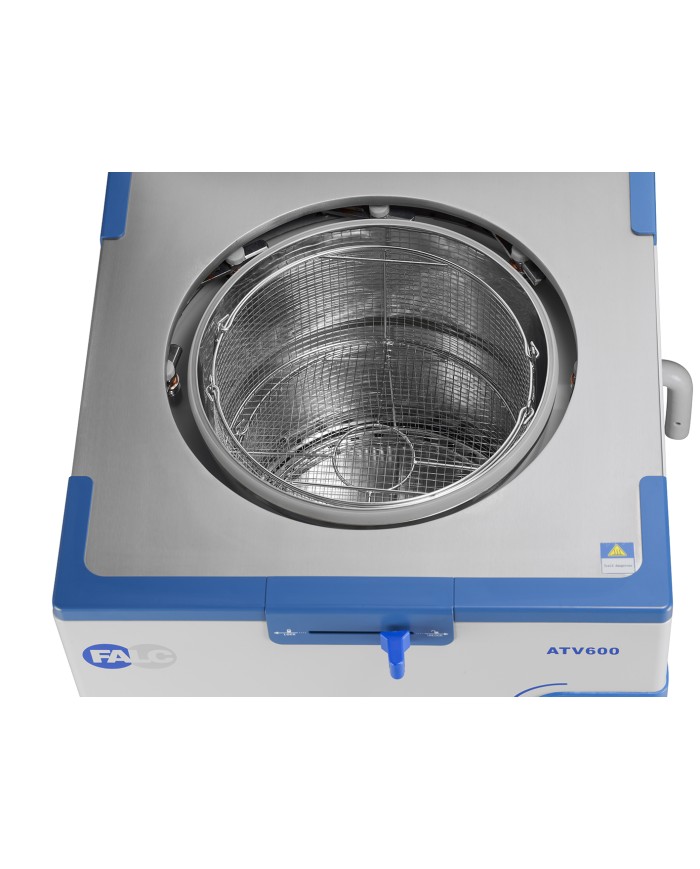

The instrument includes 2 baskets.
Description
Product Details
Vertical loading autoclave for solid and liquid materials
Sterilization cycles:
• Solid cycle
• Solid cycle with drying
• Liquid cycle
• Liquid and warming cycle
• Agar cycle with melting, sterilization and cooling
• Medical waste cycle
• Customized cycle
Dry scorch protection
Over pressure protection
Safety valve
Water level sensor
Over temperature protection
Temperature monitoring
Over current and short circuit protection
Electric leakage protection
Anti-scald chamber cover and bench
Automatic troubleshooting
3 safety devices:
• Cooling lid lock blocks the lid opening at set temperature
• Mechanical lock to insert before starting the cycle
• Electric double inner lock avoids accidental opening

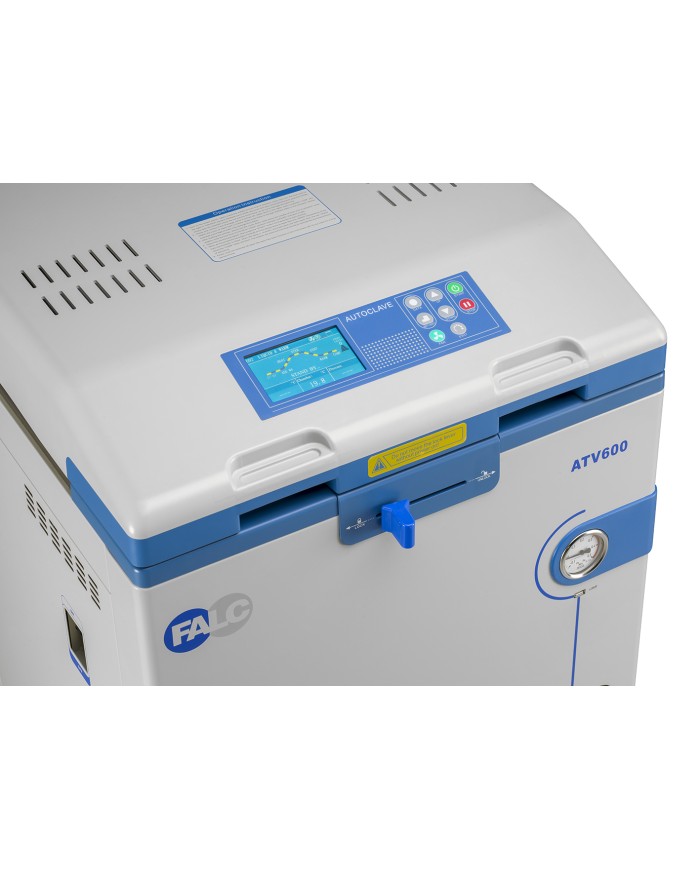

LCD display
Microcomputer control system monitors sterilization process, maintenance, calibration, traceability and recording.
Cooling fan to speed up the temperature decrease at the end of the cycle
USB port
Preset and auto start up to 6 days in advance
Automatic internal discharging with a steam collecting bottle, speed selected by 6 levels.
Automatic water filling from external tank of 28 lt with reverse osmosis water.
608.1002.08
Data sheet
| Item | 608.1002.08 |
|---|---|
| Power | V/HZ 220-240/50-60 |
| Weight | 135 Kg |
| Dimension | 660x644x980 |
| Capacity | 85 |
| Temperature accuracy | 0.1 °C |
| Max Power | 4600 W |
| Chamber material | SUS304 |
| Chamber Dimension (Dia*H, mm) | Ø 400×700 |
| Sterilization temperature | 105-138°C |
| Range of sterilization time | 1-300 minutes 1-6000 min |
| Melting temperature | 60-100°C |
| Range of melting time | 1-6000 min |
| Warming temperature | 45-60°C |
| Preset range of drying time | 1-300 minutes |
| Exhausting mode | Fully automatic internal discharging Embedded with a steam trapping bottle |
| Way of opening lid | flip type |
| Preset range of timer | 0 minute - 6 days delayed |
| Rated working pressure | 0.27 MPa 0.35 Mpa |
| Controller | "inspiration" fast-speed microcomputer intelligent control system |
| Necessary water | Reverse osmosis water |
| Environment | 5-45°C, relatively humidity 10-85% |
| Program Memory | 60 cycles |
| Dimensions of basket (Dia*H) | Ø360x280 mm |
| Display range of pressure gauge | -0.1 - 0.5 Mpa |
| Plug | 32 A |
| Drying temperature | 80-140 °C |
| Temperature range for lid lock | 40-80°C per i cicli per liquidi , 40-99°C per altri cicli |
| Steam collector | included |
| Inner water tank | 28 lt |
