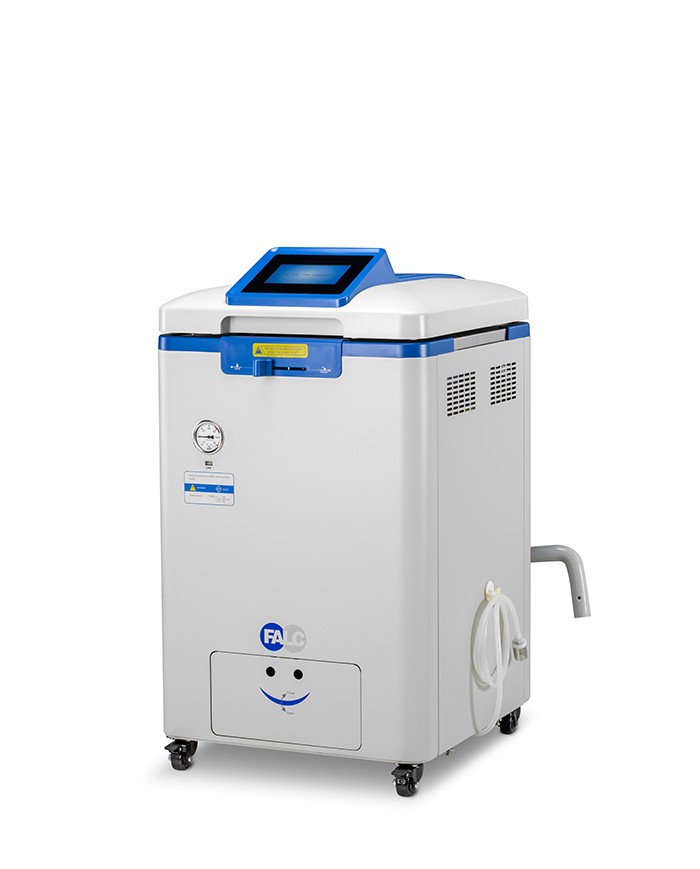

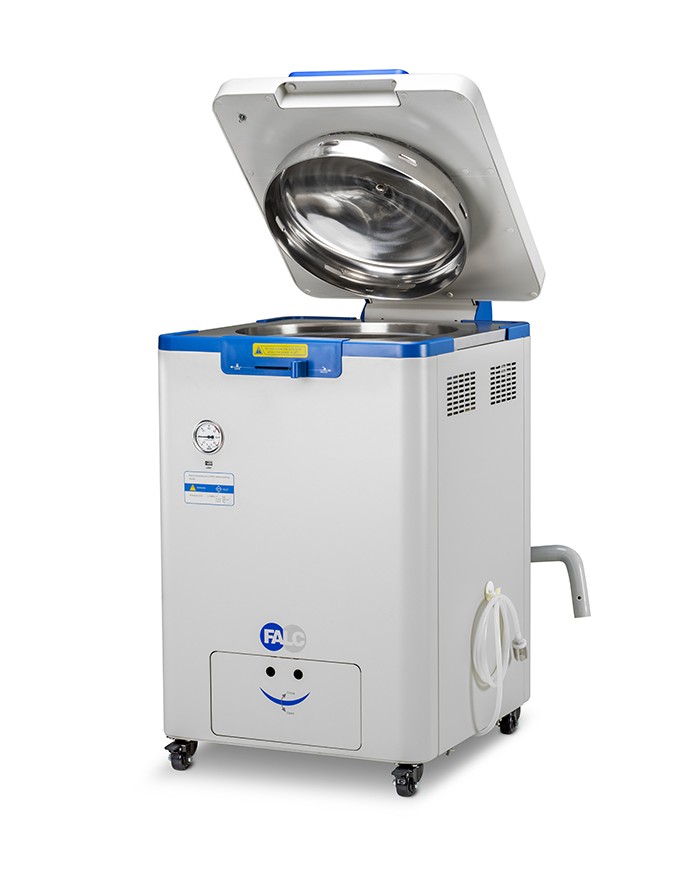

VERTICAL AUTOCLAVE WITH DISPLAY TOUCHSCREEN 110 LT - ATV1100T
€0.00
Tax included
The ATV 1000T vertical autoclave is designed for the sterilization of large volumes and offers maximum operational flexibility thanks to the multiple available cycles.

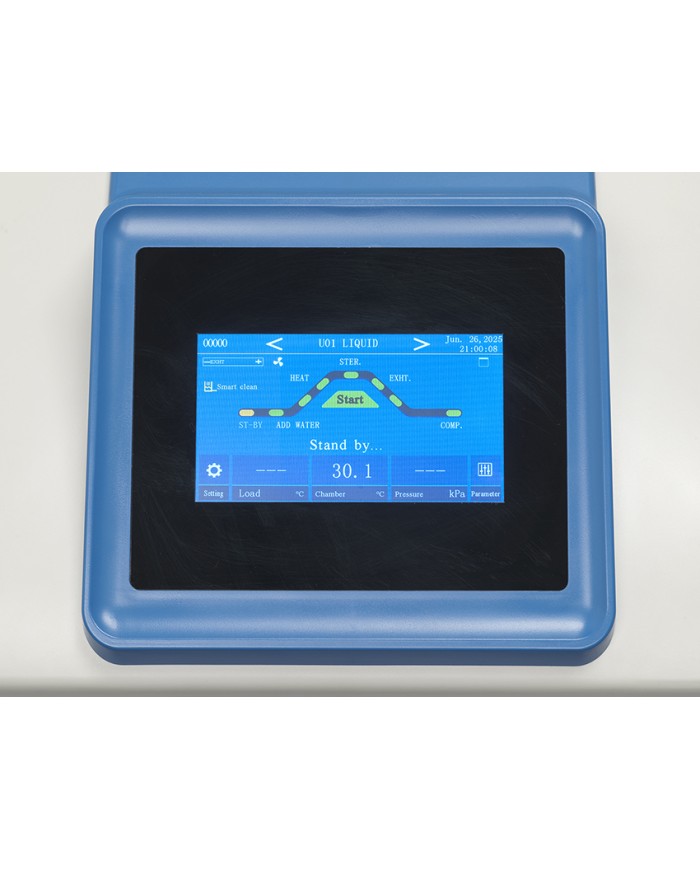

The modern LCD touchscreen display allows simple and intuitive control of all working parameters, while the integrated USB port enables data saving and transfer.

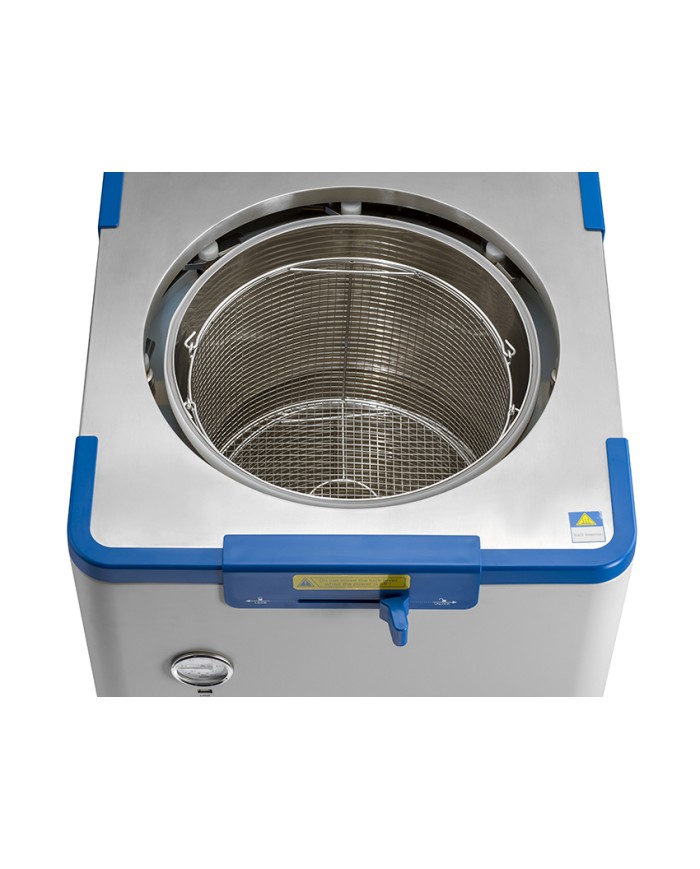

The unit is supplied complete with 3 baskets, ensuring immediate and efficient use for laboratory applications.
Description
Product Details
Vertical-loading autoclave for solid and liquid materials
Sterilization cycles:
- Solid cycle
- Solid cycle with drying
- Liquid cycle
- Liquid cycle with warming function
- Agar cycle with melting, sterilization, and cooling
- Waste sterilization cycle
- Customizable cycle
Safety features:
- Burn protection
- Overpressure protection
- Safety valve
- Water level sensor
- Overheating protection
- Temperature monitoring
- Overvoltage and short-circuit protection
- Electric leakage protection
- Thermally insulated lid and casing
- Alarm notification
Additional technical features:
- LCD touchscreen display
- The system microcomputer allows control of the sterilization process, its maintenance, calibration, traceability, and data recording.
- Cooling fan to speed up temperature reduction at the end of the cycle
- USB port
- Automatic pre-setting and start up to 6 days in advanced mode
- Automatic internal discharge with 6-level vapor collection speed
- Automatic water filling from external tank of 28 lt with reverse osmosis water
3 safety devices:
- Lid lock at set temperature
- Mechanical lock to engage before cycle start
- Internal double electric lock prevents accidental opening
608.1002.12
Data sheet
| Item | 608.1002.12 |
|---|---|
| Power | V/HZ 220-240/50-60 |
| Weight | 127 Kg |
| Dimension | 582x880x1260 mm |
| Capacity | 110 |
| Chamber Dimension (Dia*H, mm) | Ø 390x895 mm |
| Necessary water | Reverse osmosis water |
| Environment | 5-45°C, relativity humidity ≤85% |
| Max pressure | 0.29 Mpa |
| Program Memory | 60 cycles |
| Dimensions of basket (Dia*H) | Ø370x190 mm |
| Display range of pressure gauge | -0.1 - 0.5 Mpa |
| Plug | 32 A |
| Drying temperature | 80-160°C |
| Temperature range for lid lock | 40-80°C per i cicli per liquidi , 40-99°C per altri cicli |
| Steam collector | included |
| Inner water tank | 28 lt |
