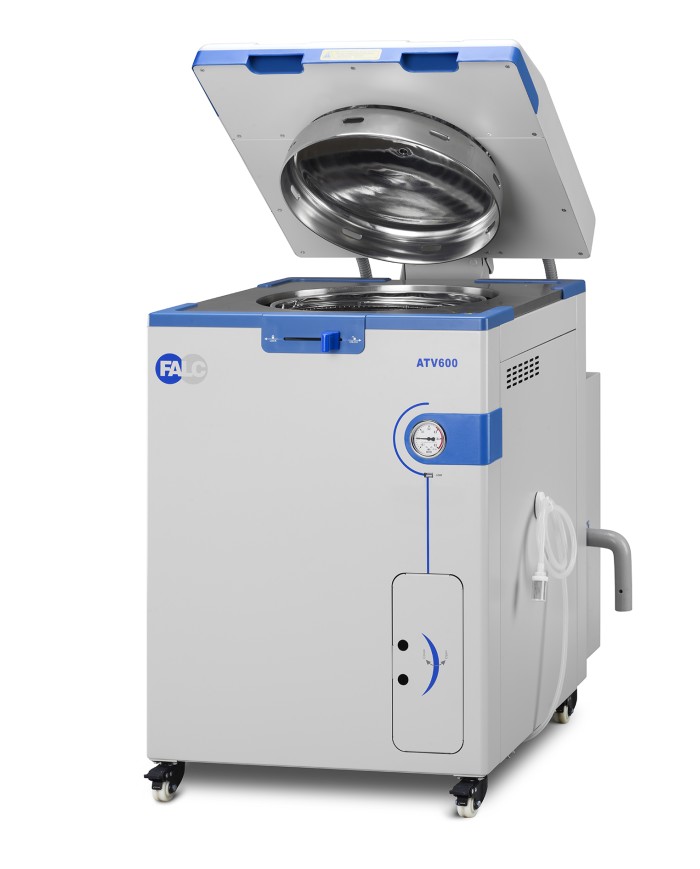

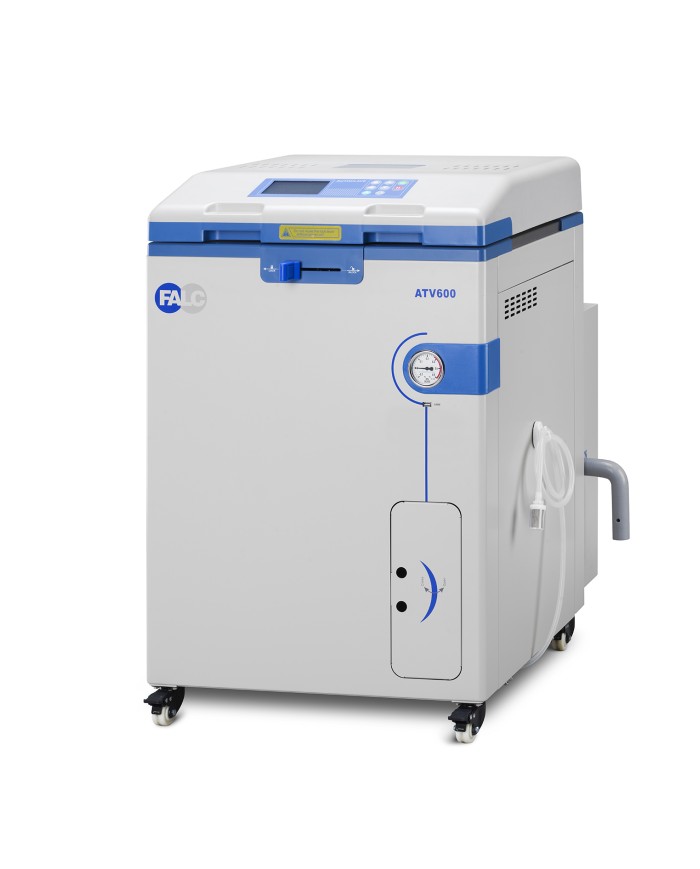

VERTICAL AUTOCLAVE WITH LCD DISPLAY 60 LT - ATV600
€0.00
Tax included
The ATV 600 vertical autoclave is designed for the sterilization of large volumes, offering versatility and reliability thanks to its multiple available working cycles.

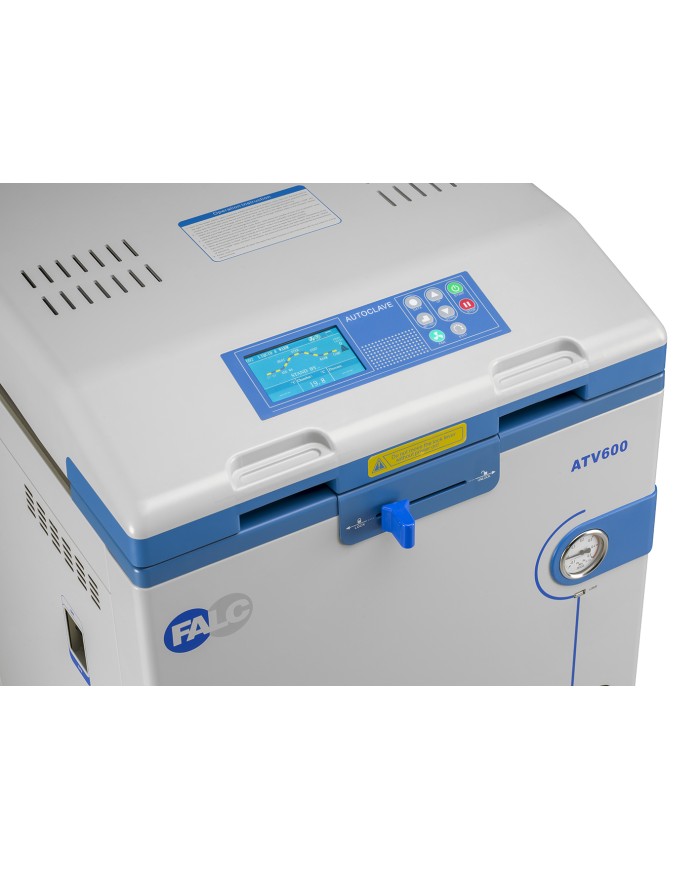

The LCD display allows simple and intuitive control of sterilization parameters, while the integrated USB port enables data saving and transfer, ensuring traceability and process monitoring.

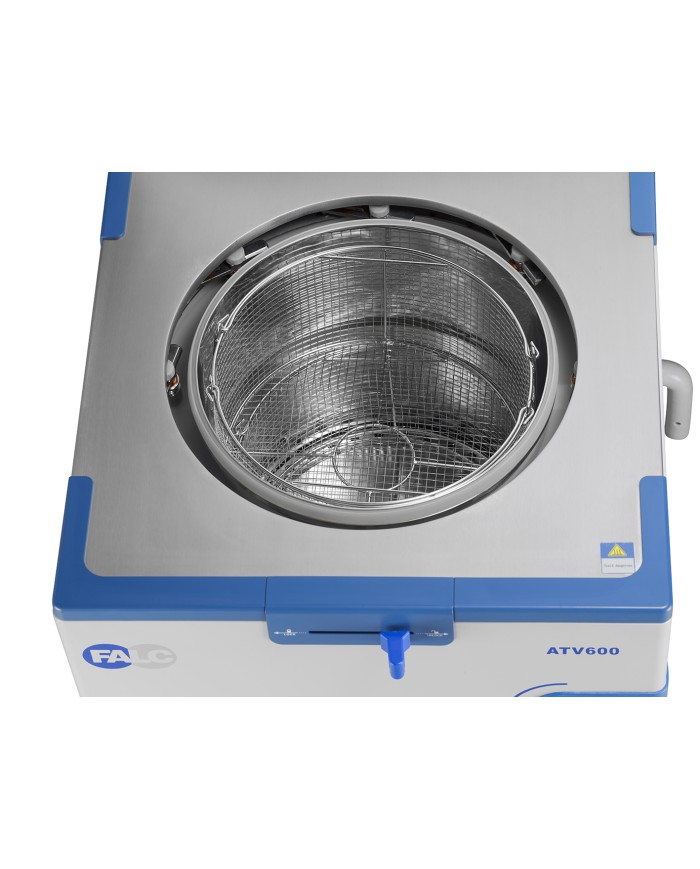

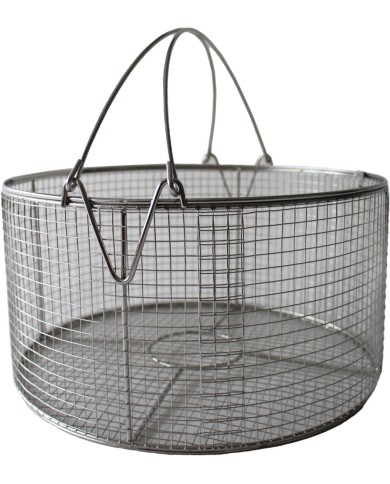

The unit comes complete with 2 baskets, allowing immediate and efficient laboratory use, with the possibility to add optional accessories to meet various operational needs.
Description
Product Details
Vertical-loading autoclave for solid and liquid materials
Sterilization cycles:
- Solid cycle
- Solid cycle with drying
- Liquid cycle
- Liquid cycle with warming function
- Agar cycle with melting, sterilization, and cooling
- Waste sterilization cycle
- Customizable cycle
Safety features:
- Burn protection
- Overpressure protection
- Safety valve
- Water level sensor
- Overheating protection
- Temperature monitoring
- Overvoltage and short-circuit protection
- Electric leakage protection
- Thermally insulated lid and casing
- Alarm notification
Additional technical features:
- LCD display
- The system microcomputer allows control of the sterilization process, its maintenance, calibration, traceability, and data recording.
- Cooling fan to speed up temperature reduction at the end of the cycle
- USB port
- Automatic pre-setting and start up to 6 days in advanced mode
- Automatic internal discharge with 6-level vapor collection speed
- Automatic water filling from external tank of 28 lt with reverse osmosis water
3 safety devices:
- Lid lock at set temperature
- Mechanical lock to engage before cycle start
- Internal double electric lock prevents accidental opening
608.1002.06
Data sheet
| Item | 608.1002.06 |
|---|---|
| Power | V/HZ 220-240/50-60 |
| Weight | 130 Kg |
| Dimension | 660x644x980 mm |
| Capacity | 60 |
| Temperature accuracy | 0.1 °C |
| Max Power | 2900 W |
| Chamber material | SUS304 |
| Chamber Dimension (Dia*H, mm) | Ø 400×505 |
| Sterilization temperature | 105-138°C |
| Range of sterilization time | 1-6000 min |
| Melting temperature | 60-100°C |
| Range of melting time | 1-6000 min |
| Warming temperature | 45-60°C |
| Preset range of drying time | 1-300 minutes |
| Exhausting mode | Fully automatic internal discharging Embedded with a steam trapping bottle |
| Way of opening lid | flip type |
| Preset range of timer | 0 minute - 6 days delayed |
| Rated working pressure | 0.35 Mpa |
| Necessary water | Reverse osmosis water |
| Environment | 5-45°C, relatively humidity 10-85% |
| Max pressure | 0.27 Mpa |
| Program Memory | 60 cycles |
| Dimensions of basket (Dia*H) | Ø300x200 mm |
| Display range of pressure gauge | -0.1 - 0.5 Mpa |
| Plug | 16 A |
| Drying temperature | 80-140 °C |
| Temperature range for lid lock | 40-80°C per i cicli per liquidi , 40-99°C per altri cicli |
| Steam collector | included |
| Inner water tank | 28 lt |
