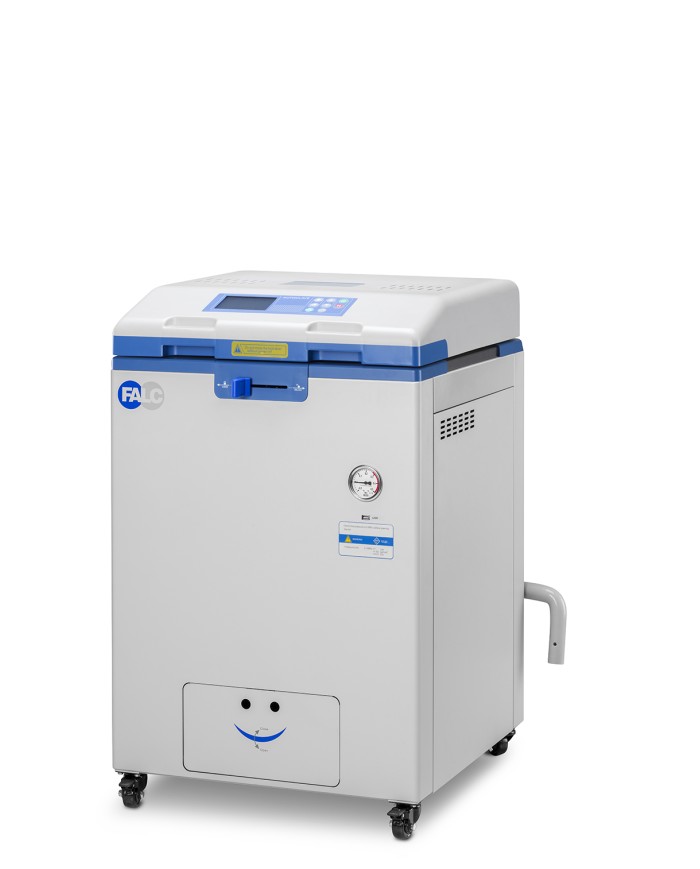

VERTICAL AUTOCLAVE 60 LT- FOOD LINE - ATV600F
€0.00
Tax included
The ATV600F is the ideal vertical autoclave for large volumes and offers numerous configuration options to meet the needs of any laboratory or food R&D environment.
Its high-performance preset cycles, combined with the LCD display and USB port, allow for easy monitoring and data management. Thanks to the automatic calculation of the F₀ value, each cycle ensures precise, repeatable sterilization in compliance with food industry standards.
The ATV600F is perfect for laboratory food processes, R&D, and quality control, supporting various applications including the sterilization of packaged products, sealed containers, liquids, and food samples, and enabling the simulation of industrial thermal processes in a controlled way, preserving the safety, quality, and integrity of the products.

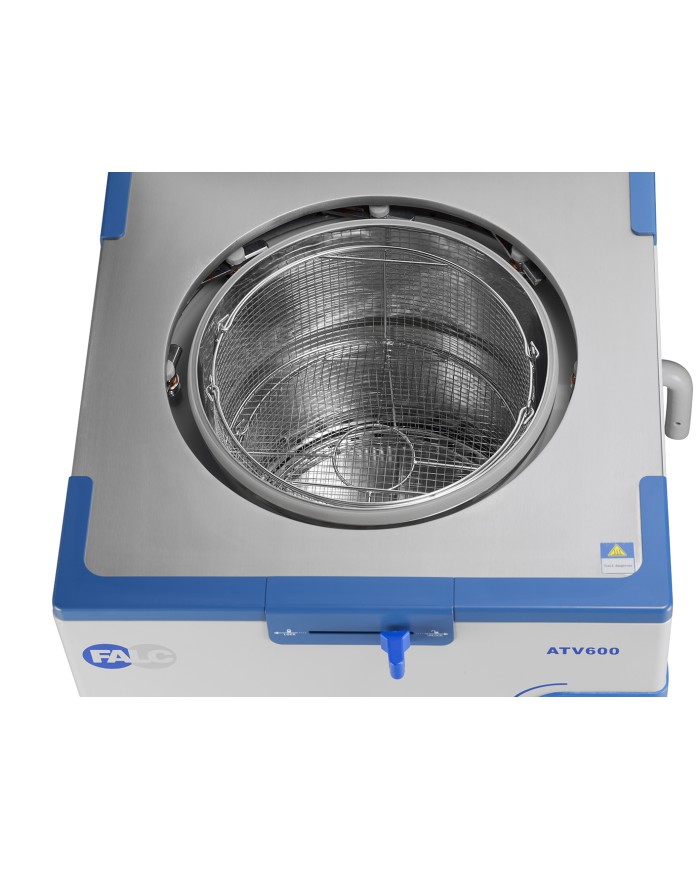

The unit includes 2 stainless steel baskets for flexible and efficient loading of solid materials, liquids, and food samples.
Description
Product Details
Vertical-loading autoclave for solid and liquid materials
Sterilization cycles:
- Solid cycle
- Solid cycle with drying
- Liquid cycle
- Liquid cycle with warming function
- Agar cycle with melting, sterilization, and cooling
- Waste sterilization cycle
- Cycle with counterpressure (for closed containers)
- Cycle with spray (for rapid post-sterilization cooling)
- Customizable cycle
Safety features:
- Burn protection
- Overpressure protection
- Safety valve
- Water level sensor
- Overheating protection
- Temperature monitoring
- Overvoltage and short-circuit protection
- Electric leakage protection
- Thermally insulated lid and casing
- Alarm notification
Additional technical features:

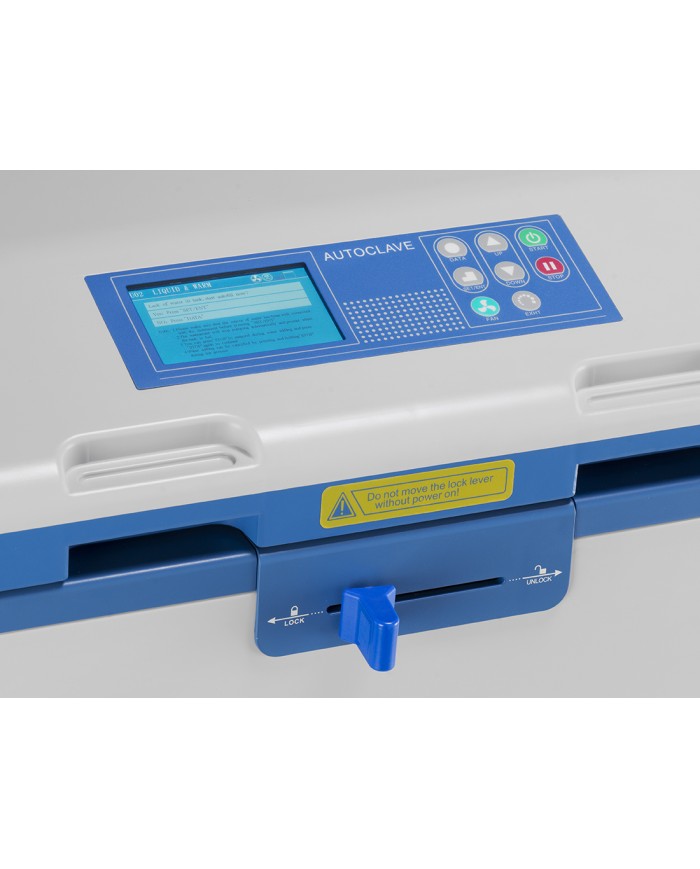

- LCD display
- The system microcomputer allows control of the sterilization process, its maintenance, calibration, traceability, and data recording.
- Cooling fan to speed up temperature reduction at the end of the cycle
- USB port
- Automatic pre-setting and start up to 6 days in advanced mode
- Automatic internal discharge with 6-level vapor collection speed

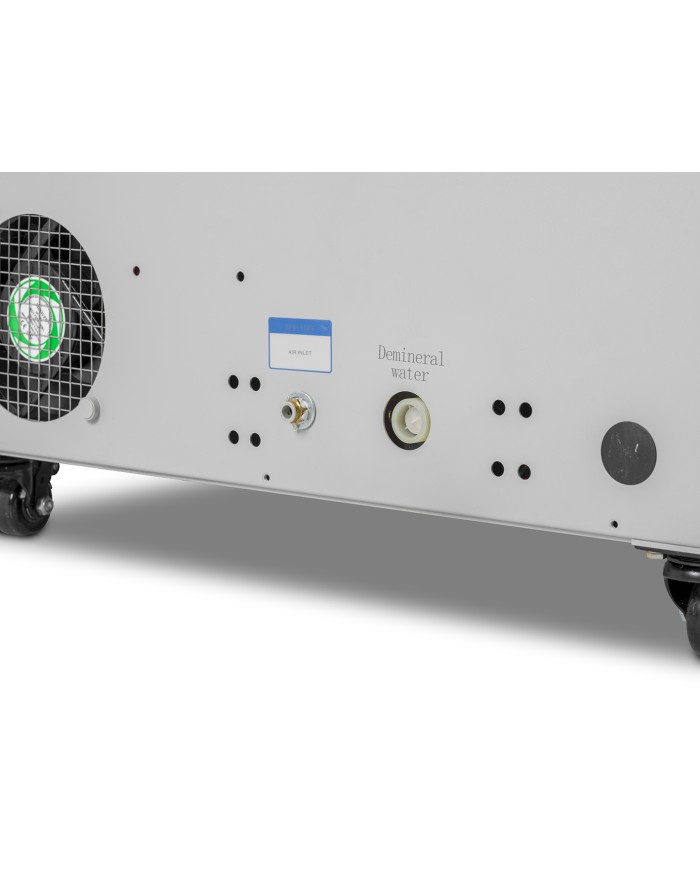

- Automatic water supply from mains via purification device
3 safety devices:
- Lid lock at set temperature
- Mechanical lock to engage before cycle start
- Internal double electric lock prevents accidental opening
608.1003.06
Data sheet
| Item | 608.1002.06 |
|---|---|
| Power | V/HZ 220-240/50-60 |
| Weight | 135 Kg |
| Dimension | 644x831x980 mm |
| Capacity | 60 |
| Temperature accuracy | 0.1 °C |
| Working temperature | 45 - 138 °C |
| Max Power | 2900 W |
| Chamber material | SUS304 |
| Chamber Dimension (Dia*H, mm) | Ø 400×505 |
| Sterilization temperature | 105-138°C |
| Range of sterilization time | 1-6000 min |
| Melting temperature | 60-115°C |
| Range of melting time | 1-6000 min |
| Warming temperature | 45-79 °C |
| Preset range of drying time | 1-300 minutes |
| Exhausting mode | Fully automatic internal discharging Embedded with a steam trapping bottle |

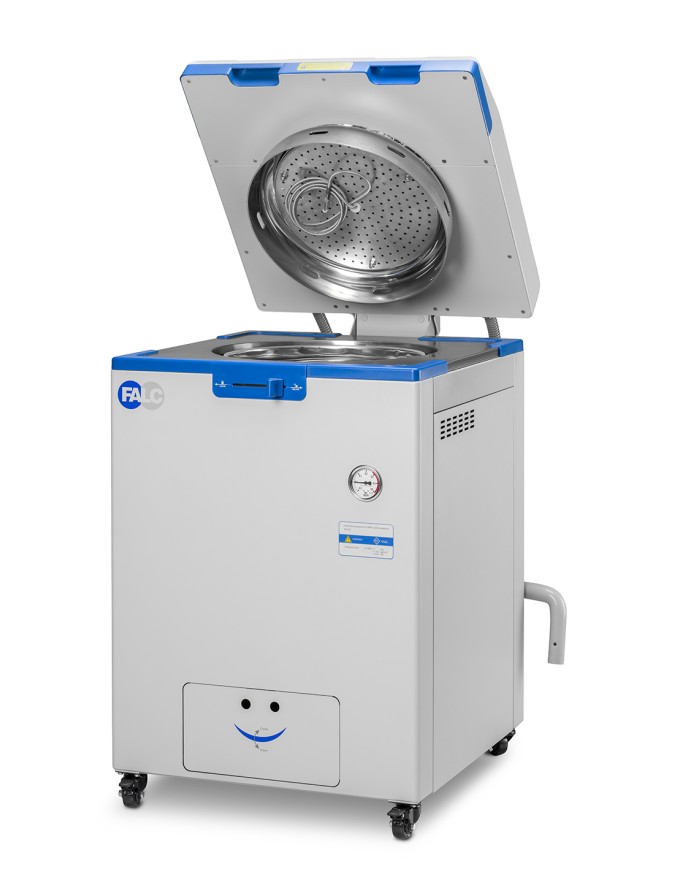

| Way of opening lid | flip type |
| Preset range of timer | 0 minute - 6 days delayed |
| Rated working pressure | 0.35 Mpa |
| Necessary water | Reverse osmosis water |
| Environment | 5-45°C, relatively humidity 10-85% |
| Max pressure | 0.29 Mpa |
| Program Memory | 60 cycles |
| Dimensions of basket (Dia*H) | Ø370x190 mm |
| Display range of pressure gauge | -0.1 - 0.5 Mpa |
| Plug | 16 A |
| Drying temperature | 80-160°C |
| Temperature range for lid lock | 40-80°C per i cicli per liquidi , 40-99°C per altri cicli |
| Steam collector | included |
